Spindle Kit, 3kW, Air Cooled

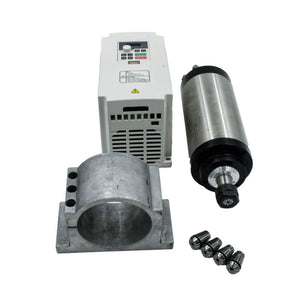

3kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (3mm, 4mm, 6mm & 8mm). The only thing you will need to run the spindle is the cable between the spindle and the VFD as well as the power cable to the VFD.
3kW Air-cooled Spindle for CNC machine. This is a 3-phase spindle designed to work with a 3kW or bigger Variable Frequency Drive (VFD). It has a built in ER20 Collet holder which can mount from 1mm to 13mm cutting bit shaft sizes. The rotor of the spindle is mounted with 2 bearings at the bottom of the spindle and 2 bearings at the the top, to ensure a long service life. The spindle is mounted to the gantry of the CNC machine with an aluminium bracket (sold separately). This spindle is perfect for milling and engraving of wood, plastic, foam, aluminium, brass, steel and even stone.
Specification:
- Diameter: 100mm
- Power: 3KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-300Hz
- Speed: 10-18000rpm
- Collet Size: ER20
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7003 & C7005
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
- Power: 3.7KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 17A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 220 x 120 x 140mm
- Control: By hand via built in control panel or via digital signal from controller board
