Spindle 400W, 48V, 12000RPM

R 1,299.95

Unit price per

Tax included. Shipping calculated at checkout.

400W DC spindle motor capable of running up to 12 000 RPM. This spindle is perfect for hobby applications to engrave or mill wood, plastic, composites, PCBs, structural foam and even soft metals like aluminium and brass.

Specifications:

Power output: 400W
Voltage: 0 - 48V
Speed: 0 - 12 000RPM
Motor Type: Brushed DC Motor
Diameter: 52mm

Collet: ER11 (Comes with a 3.175mm collet)
Cooling: Air Cooled

Working voltage :12-48VDC

Power: 400W

Speed :3000-12000RPM (12v-3000rpm,24V-6000rpm,36V-9000rpm .48V-12000rpm)

Torque:500mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

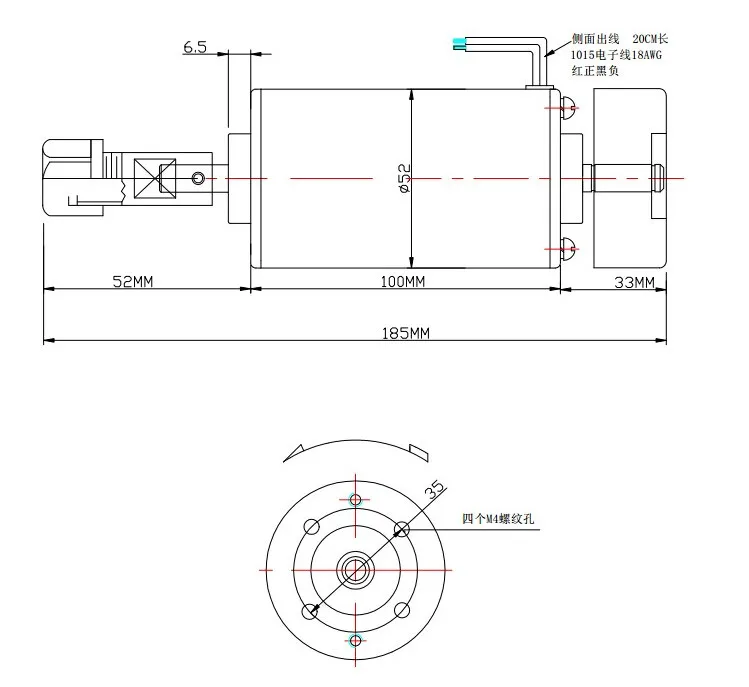

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 185mm (including gripping parts and motor)

Spindle runout of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.

If this product is purchased and no stock is available, our sales team will contact you with the option of a full refund or suggest similar alternatives which are in stock. If you would like to confirm stock before purchase, please contact our online sales team or email sales@gadgitechtrading.co.za
