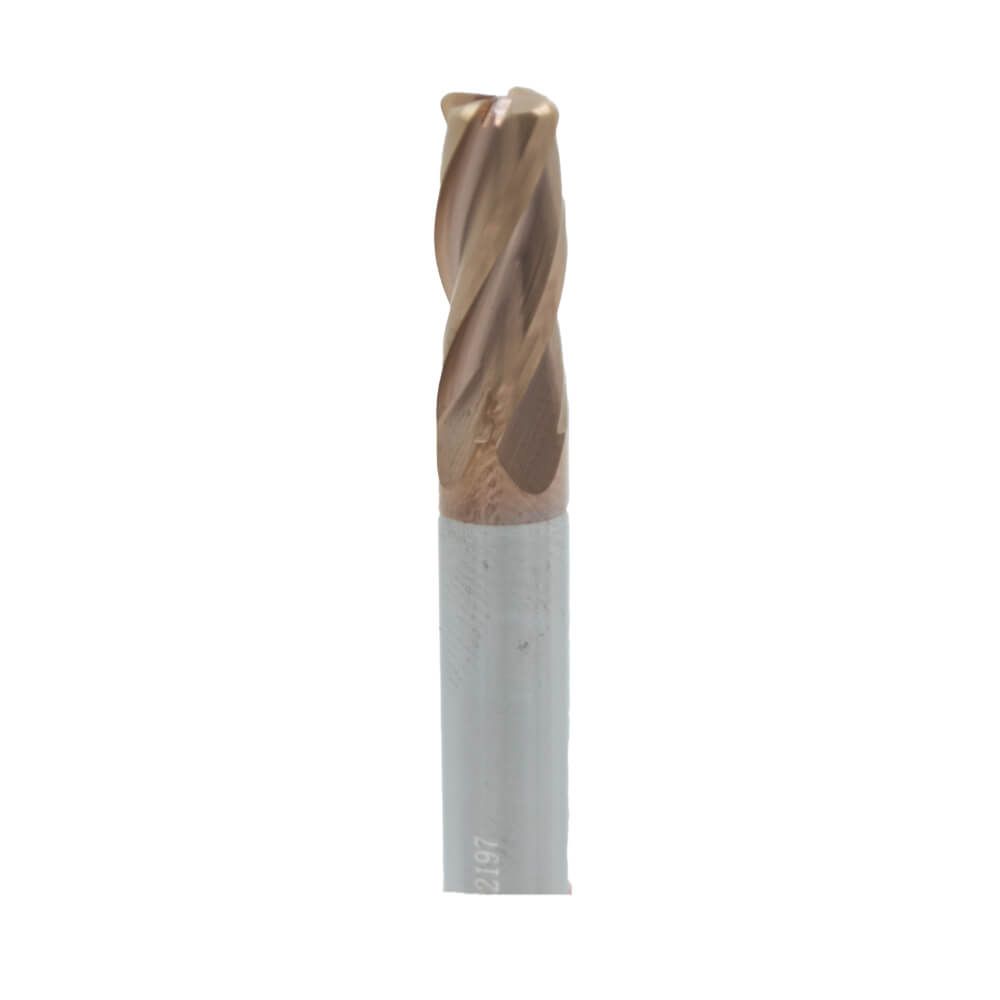

Bull Nose End Mill, 4 Flute
Bull nose end mill cutter for clearing out material or cutting pockets. Bull nose cutters are designed to remove a lot of material and they are rounded at the bottom corner to give a smooth transition at the bottom of the cut.
Specifications:
- Cutter type: Bull Nose
- Cutter material: Tungsten Carbide with copper coating
- Flute count: 4
- Materials to cut: Stainless steel, Alloy Steel, Aluminium, Copper, Cast Iron, Plastic, Wood
Cutter Diameter | Radius | Shank Diameter | Flute Length | Total Length |
3mm | 0.5mm | 4mm | 9mm | 50mm |
4mm | 0.5mm | 4mm | 9mm | 50mm |
6mm | 1mm | 6mm | 15mm | 50mm |
8mm | 1mm | 8mm | 24mm | 60mm |
10mm | 1mm | 10mm | 30mm | 75mm |
12mm | 1mm | 12mm | 30mm | 75mm |
