Spindle Kit, 2.2kW, Air Cooled
2.2kW Air Cooled Spindle Kit

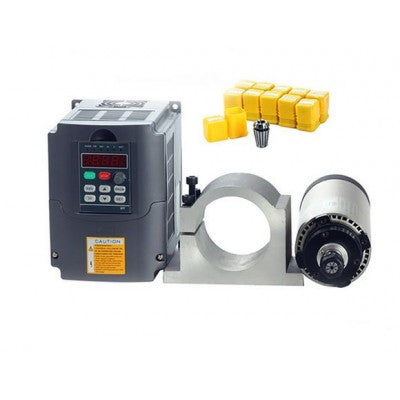

This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (3mm, 4mm, 6mm & 8mm). The only thing you will need to run the spindle is the cable between the spindle and the VFD as well as the power cable to the VFD.
2.2kW Air-cooled Spindle for CNC machine. This is a 3-phase spindle designed to work with a 2.2kW Variable Frequency Drive (VFD). It has a built in ER20 Collet holder which can mount from 1mm to 13mm cutting bit shaft sizes. The spindle is mounted to the gantry of the CNC machine with an aluminium bracket (sold separately). The rotor of the spindle is mounted with 2 bearings at the bottom of the spindle and 2 bearings at the the top, to ensure a long service life. This spindle is perfect for milling and engraving of wood, plastic, foam, aluminium, brass, steel and even stone.
Specification:
- Diameter: 80mm
- Power: 2.2KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER20
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7002 x 2, C7005 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
2.2kW Variable Frequency Drive (VFD) to drive a CNC machine spindle. This drive can be controlled via hand or via a controller board. There are a wide range of settings to fine tune the way the spindle is controlled and also comes with a manual with more details of each setting. The VFD run off single phase 220V AC and the output is also 220V provided to the spindle. It also comes with self controlled built in cooling which switches on when required.
- Power: 2.2KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 10A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 170 x 125 x 163mm
- Control: By hand via built in control panel or via digital signal from controller board
If this product is purchased and no stock is available, our sales team will contact you with the option of a full refund or suggest similar alternatives which are in stock. If you would like to confirm stock before purchase, please contact our online sales team or email sales@gadgitechtrading.co.za
