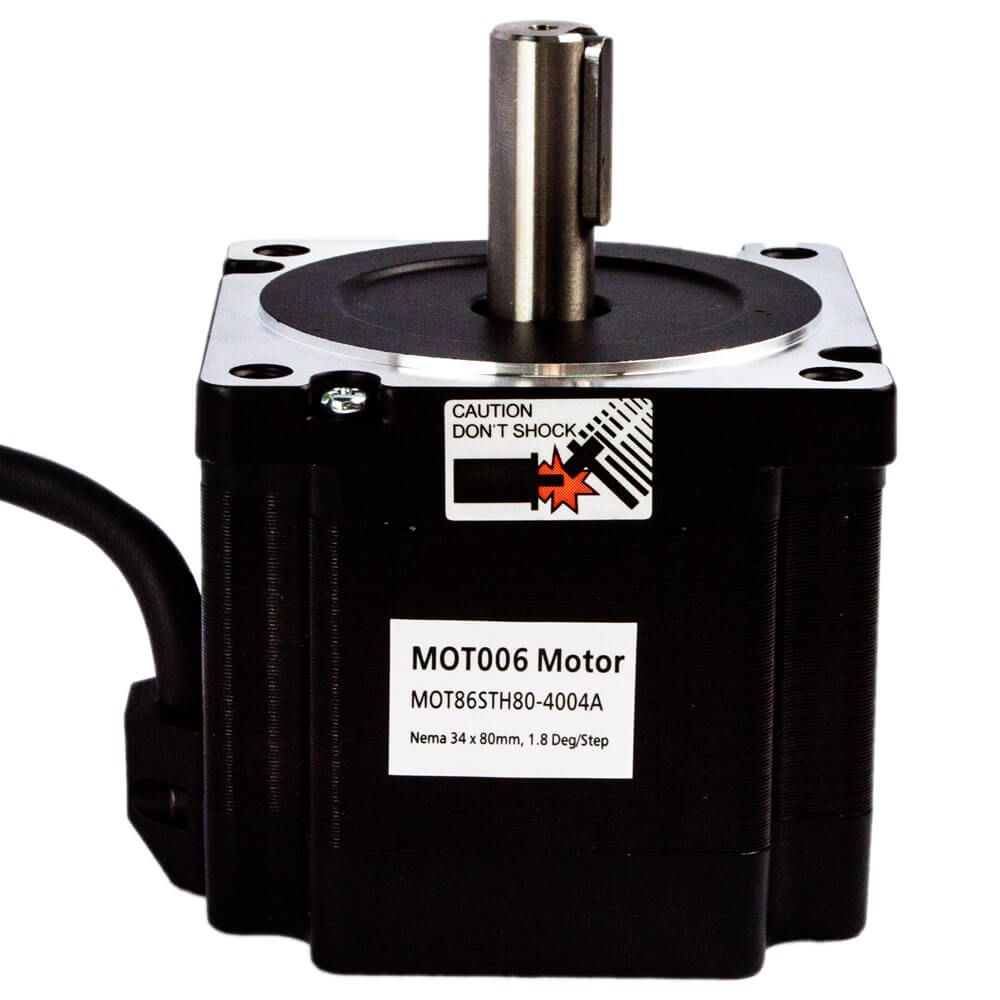

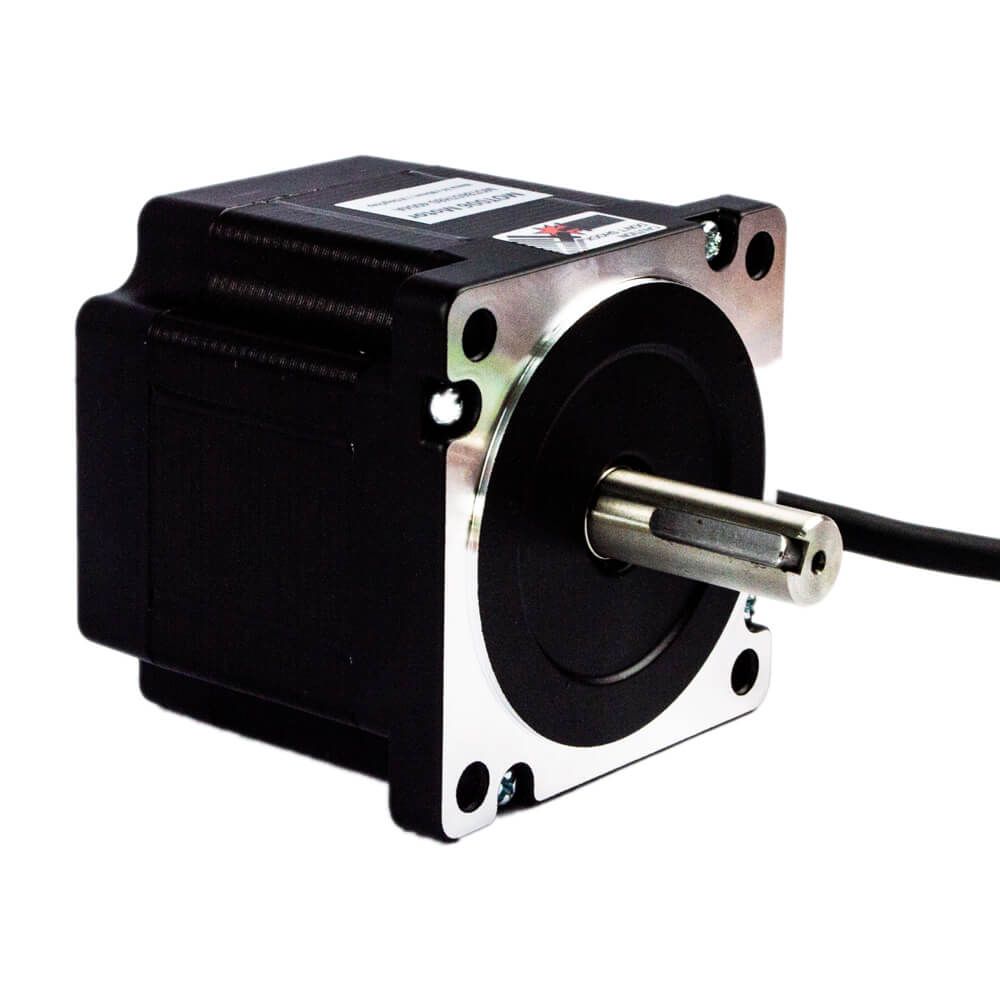

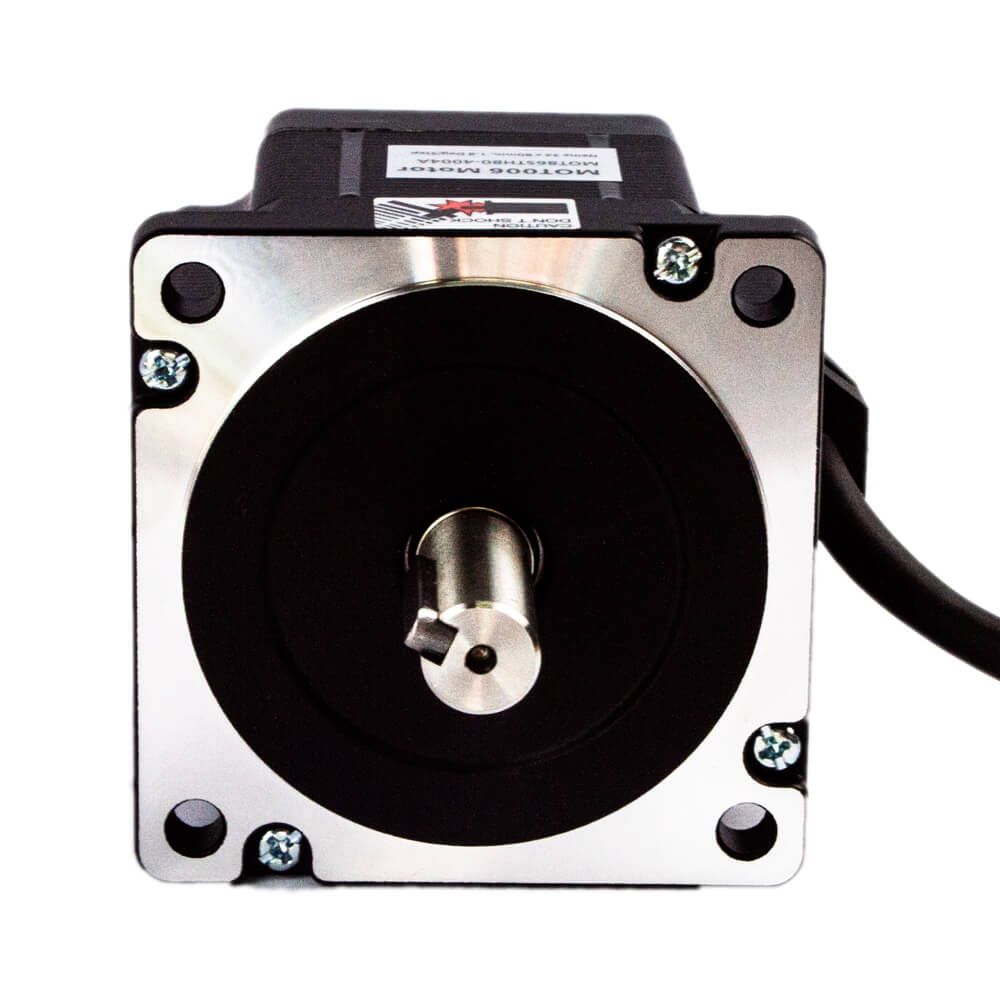

Stepper motor, Nema 34 x 80mm, 1.8 Deg/step
NEMA 34 stepper motors are used on big 3D printers and CNC machines. This is a high torque, bi-polar, 4-wire stepper motor and comes with 500mm leads.
Specifications:
- Size: NEMA 34 (86mm x 86mm)
- Length: 78mm ± 2mm
- Step angle: 1.8 Degrees
- Current/Phase: 4.0A
- Resistance/Phase: 0.75 Ohm
- Inductance/Phase: 5.6 mH
- Holding Torque: 46 kg.cm (4.6 Nm)
- Number of leads: 4
- Weight: 2.2 kg
- Max radial force on shaft: 220N (10mm from flange)
- Max Axial force on shaft: 60N
- Shaft radial play: 0.02mm Max with 450g load
- Shaft axial play: 0.05mm Max with 450g load
- Shaft interface: Keyway
Dimensions:
