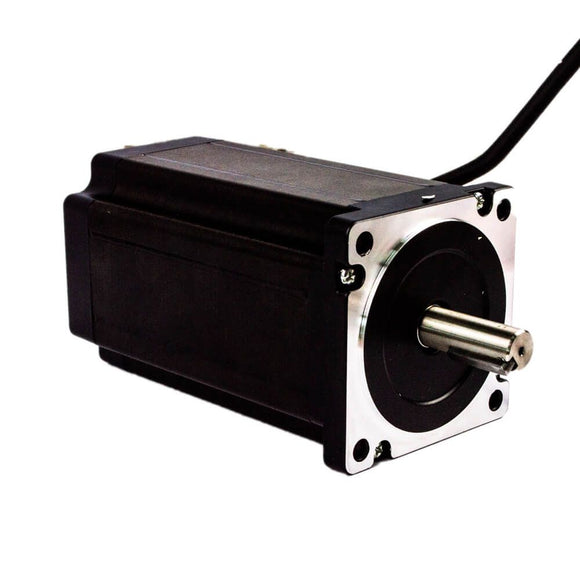

Stepper motor, NEMA 34 x 151mm, 1.8 Deg/Step
NEMA 34 Stepper Motor x 151mm for high torque applications like CNC machines.
Specifications:
- Size: NEMA 34 (86mm x 86mm)
- Length: 151mm ± 2mm
- Output shaft diameter: 14mm
- Holding Torque: 12N.m
- Current: 6.0A
- Inductance: 9 mH
- Step Angle: 1.8 degree
- Weight: 3.9kg
- Resistance/Phase: 0.75 Ohm
- Number of Leads: 4 (Bipolar)
- Cable length: 500mm
- Max radial force on shaft: 220N (10mm from flange)
- Max Axial force on shaft: 60N
- Shaft radial play: 0.02mm Max with 450g load
- Shaft axial play: 0.08mm Max with 450g load
- Shaft interface: Keyway
If this product is purchased and no stock is available, our sales team will contact you with the option of a full refund or suggest similar alternatives which are in stock. If you would like to confirm stock before purchase, please contact our online sales team or email sales@gadgitechtrading.co.za
