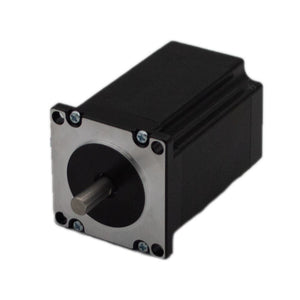

Stepper motor, NEMA 23 x 82mm, 1.8 Deg/Step

Stepper motor, NEMA 23 x 82mm, 1.8 Deg/Step

  • R 608.65
    Unit price per
Shipping calculated at checkout.


NEMA 23 stepper motors are used on big 3D printers and mid size CNC machines.  This is a high torque stepper motor and comes with 300mm leads.

The stepper driver we recommend with this motor is the MKS TB6600 or the Wantai DQ542MA stepper driver.

Specifications:

  • Size: NEMA 23 (56.4mm x 56.4mm)
  • Length: 82mm ± 2mm
  • Step angle: 1.8 Degrees
  • Rated voltage: 3.6V
  • Current/Phase: 3A
  • Resistance/Phase: 1.2 Ohm
  • Inductance/Phase: 4 mH
  • Holding Torque: 22kg.cm (2.2 Nm)
  • Number of leads: 4
  • Weight: 1.09 kg
  • Max Radial Force on output shaft: 75N (10mm from flange)
  • Max Axial Force on output shaft: 15N

Dimensions:
