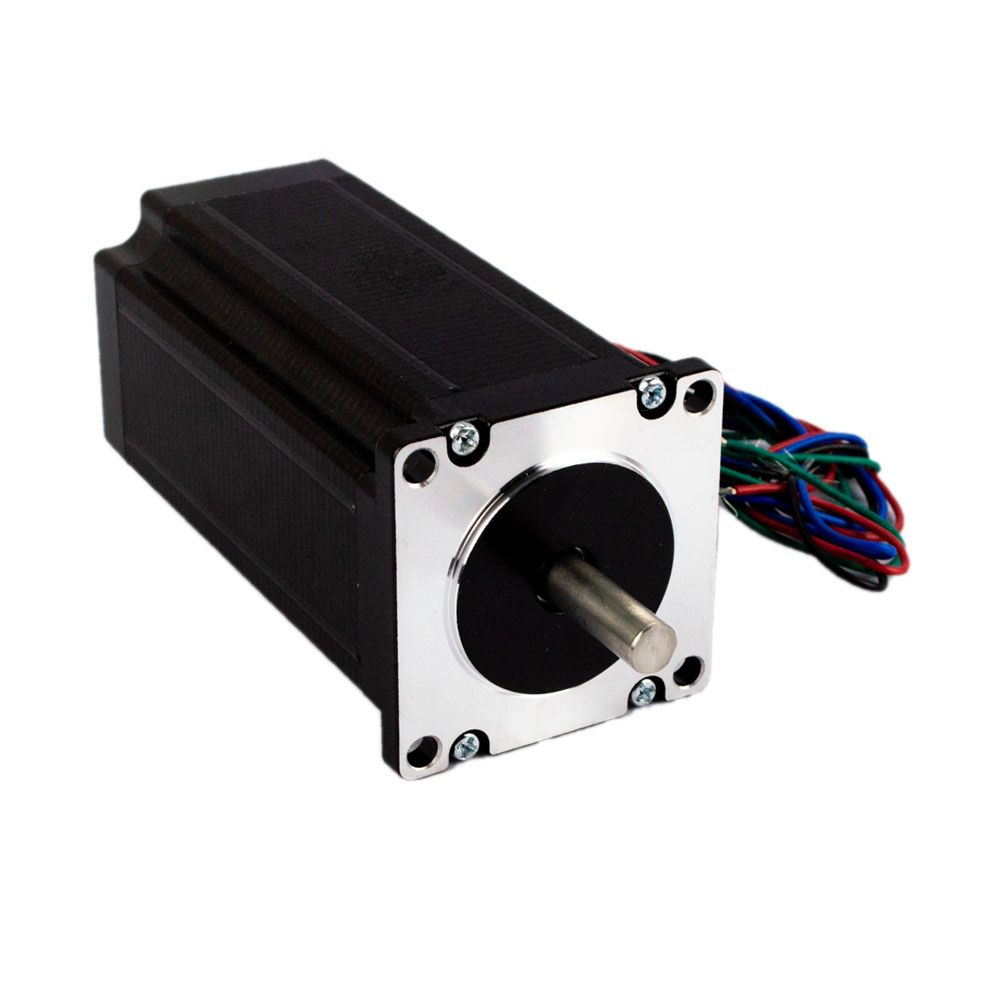

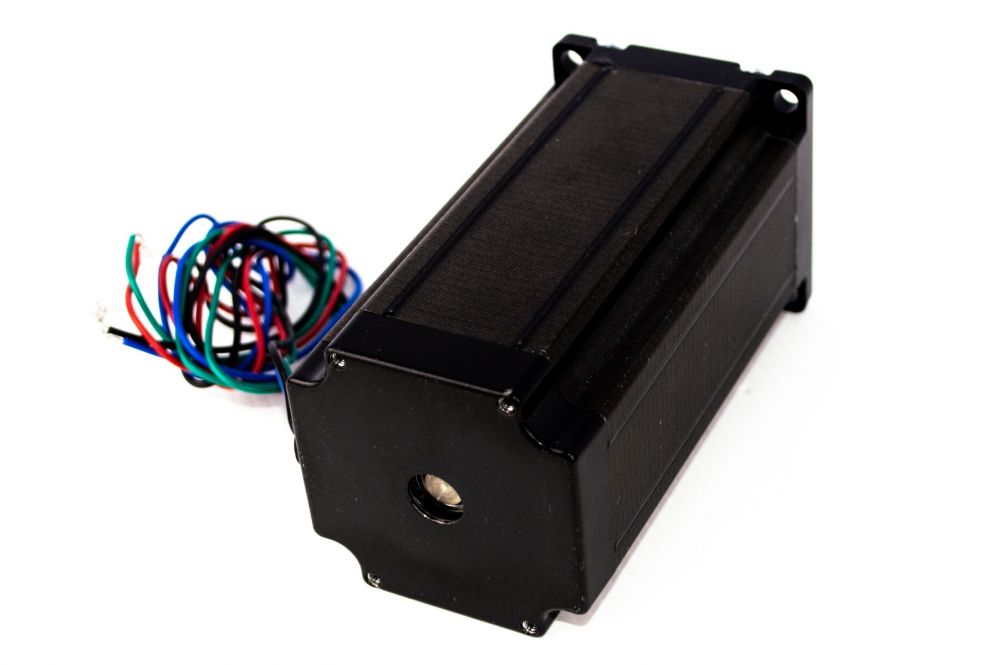

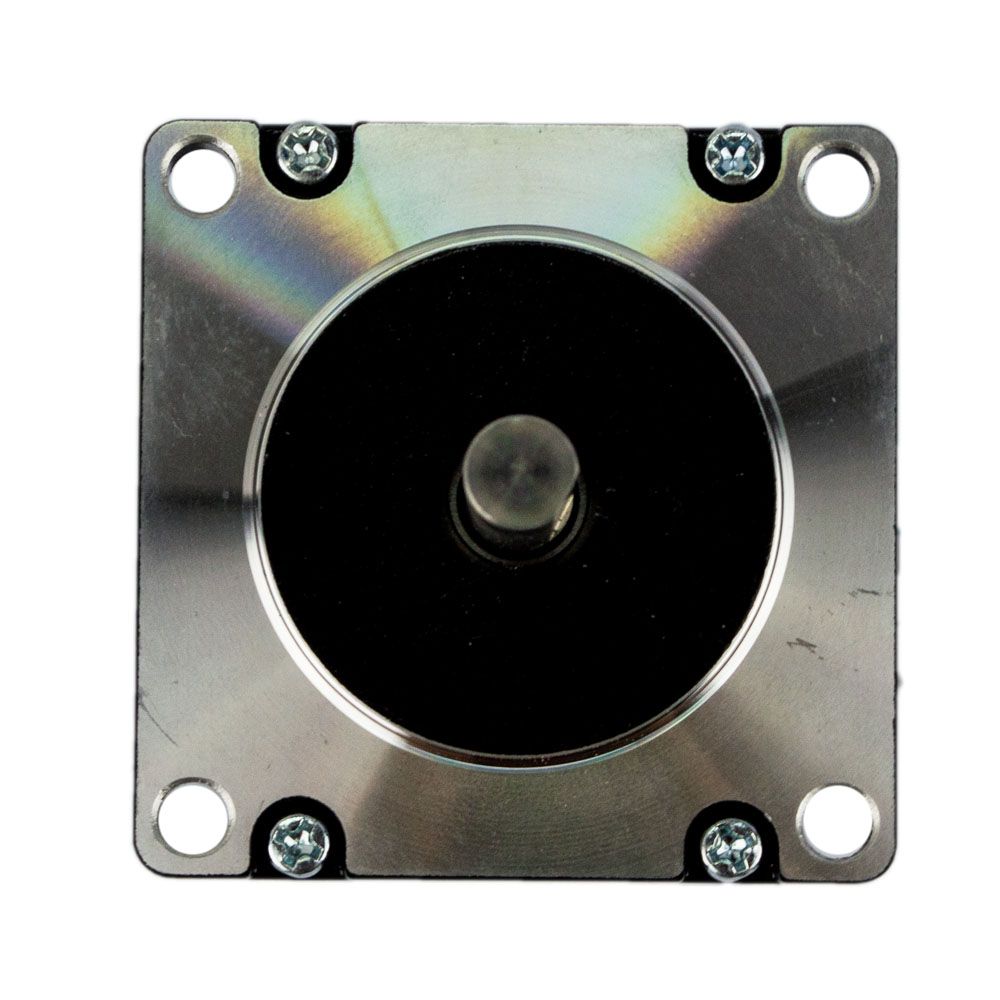

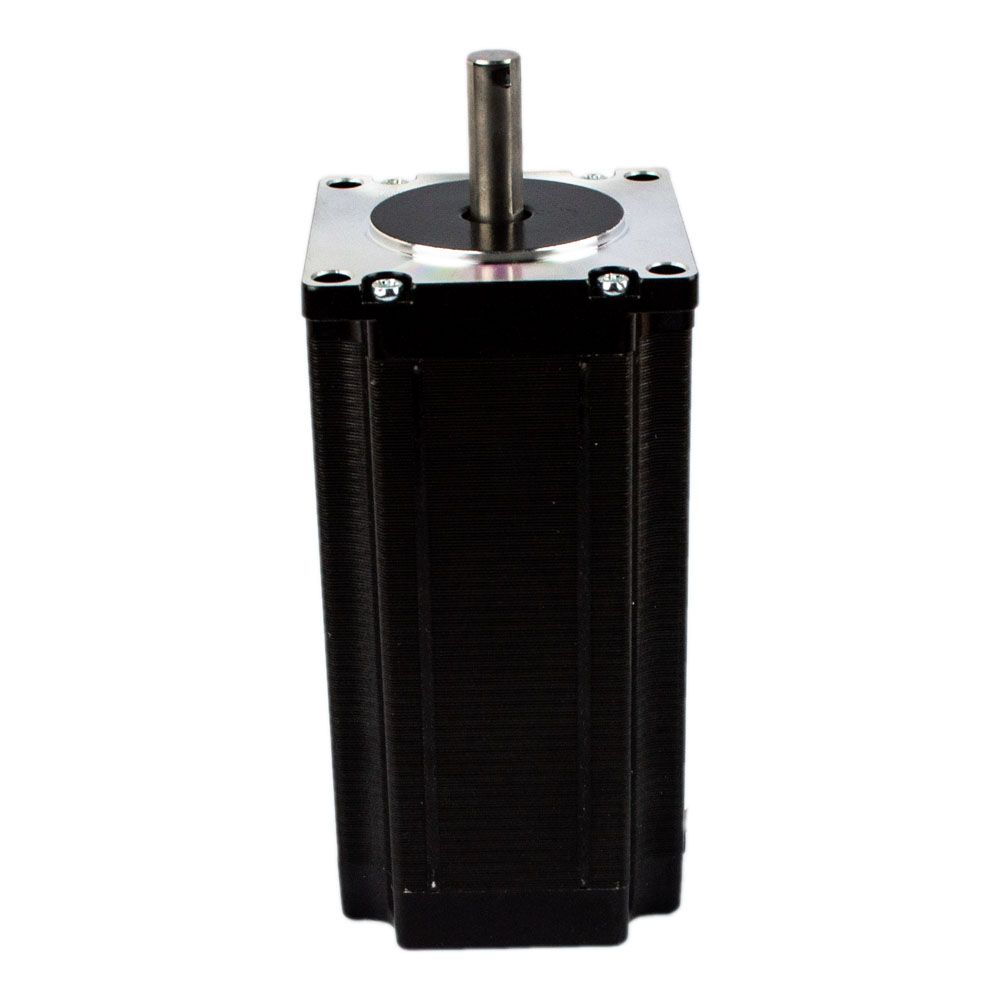

Stepper motor, NEMA 23 x 112mm, 1.8 Deg/Step
NEMA 23 stepper motors are used on big 3D printers and CNC machines. This is a high torque, bi-polar, 4-wire stepper motor and comes with 300mm leads.
Specifications:
- Size: NEMA 23 (57mm x 57mm)
- Length: 112mm
- Step angle: 1.8 Degrees
- Rated voltage: 6.3V
- Current/Phase: 3A
- Resistance/Phase: 2.1 Ohm
- Inductance/Phase: 9mH
- Holding Torque: 30kg.cm
- Number of leads: 4
- Rotor inertia: 810g.cm^2
- Weight: 1.63kg
- Recommended stepper driver for this motor: MKS TB6600 Stepper Driver
Dimensions:
Please note: This motors has a 8mm diameter output shaft due to the higher torque.
