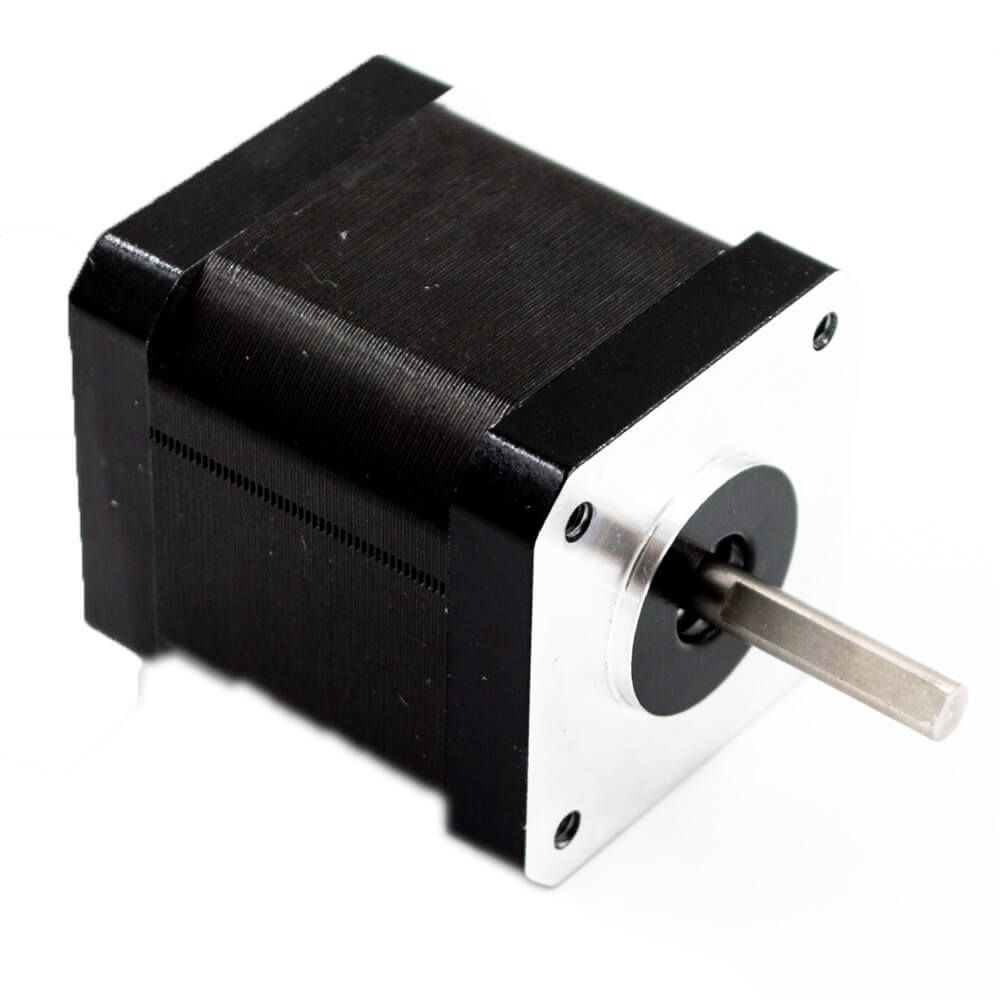

Stepper motor, NEMA 17, 0.9 deg/step

Stepper motor, NEMA 17, 0.9 deg/step

  • R 313.00
    Unit price per
Shipping calculated at checkout.


NEMA 17 stepper motors are used in almost all the Reprap 3D Printers.  This motor comes with a 0.9 deg/step resolution which will improve the acuracy of the movement.  This can be used to drive your X and Y axis to improve the resolution.  The increased resolution is usually not required for the Z axis.  This is a high torque, bi-polar, 4-wire stepper motor and comes with pig tail leads.



Specifications:

  • Size: NEMA 17 (42mm x 42mm)
  • Length: 48mm
  • Step angle: 0.9 Degrees
  • Rated voltage: 2.8V
  • Current/Phase: 1.7A
  • Resistance/Phase: 1.65 Ohm
  • Inductance/Phase: 4mH
  • Holding Torque: 4200g.cm
  • Number of leads: 4
  • Rotor inertia: 68g.cm^2
  • Weight: 366g
  •
