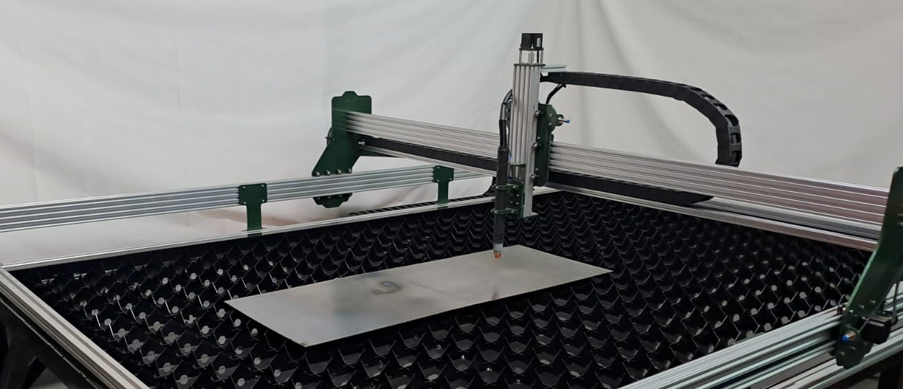

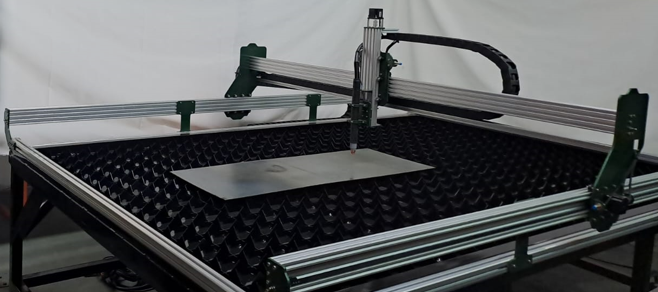

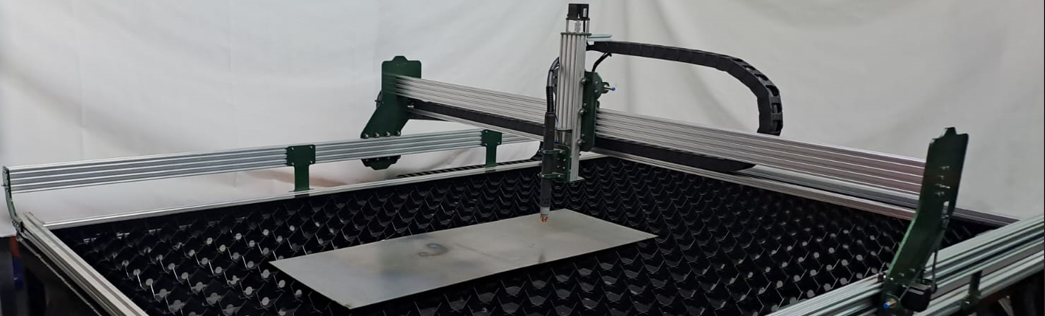

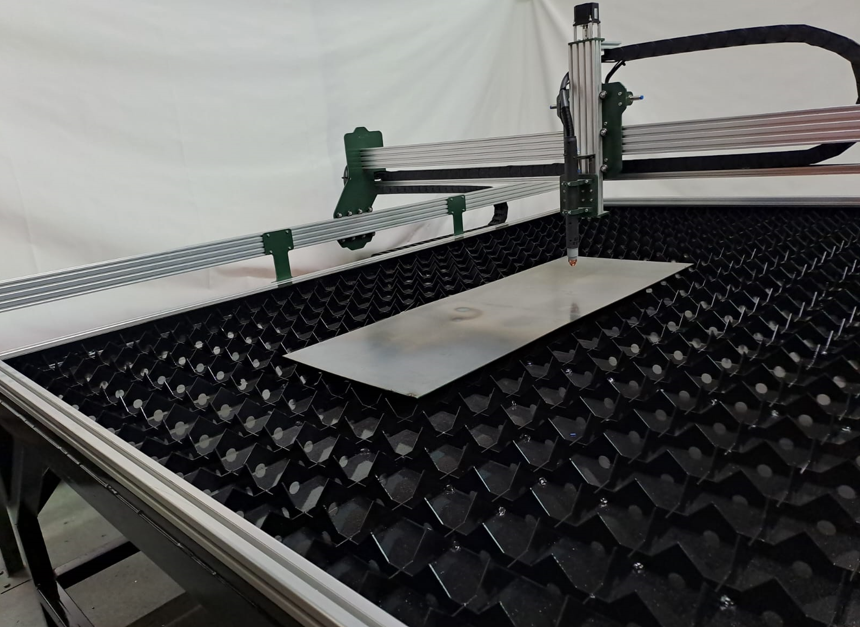

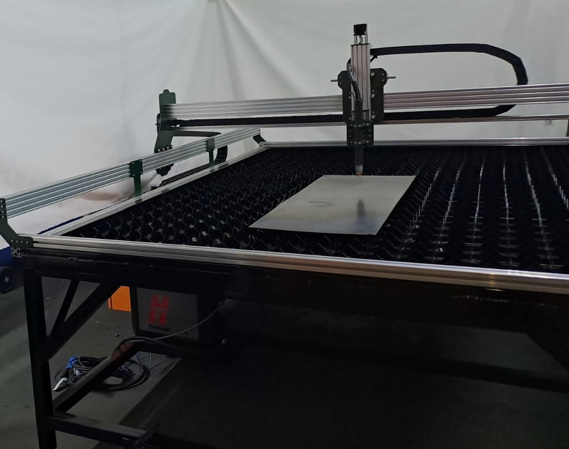

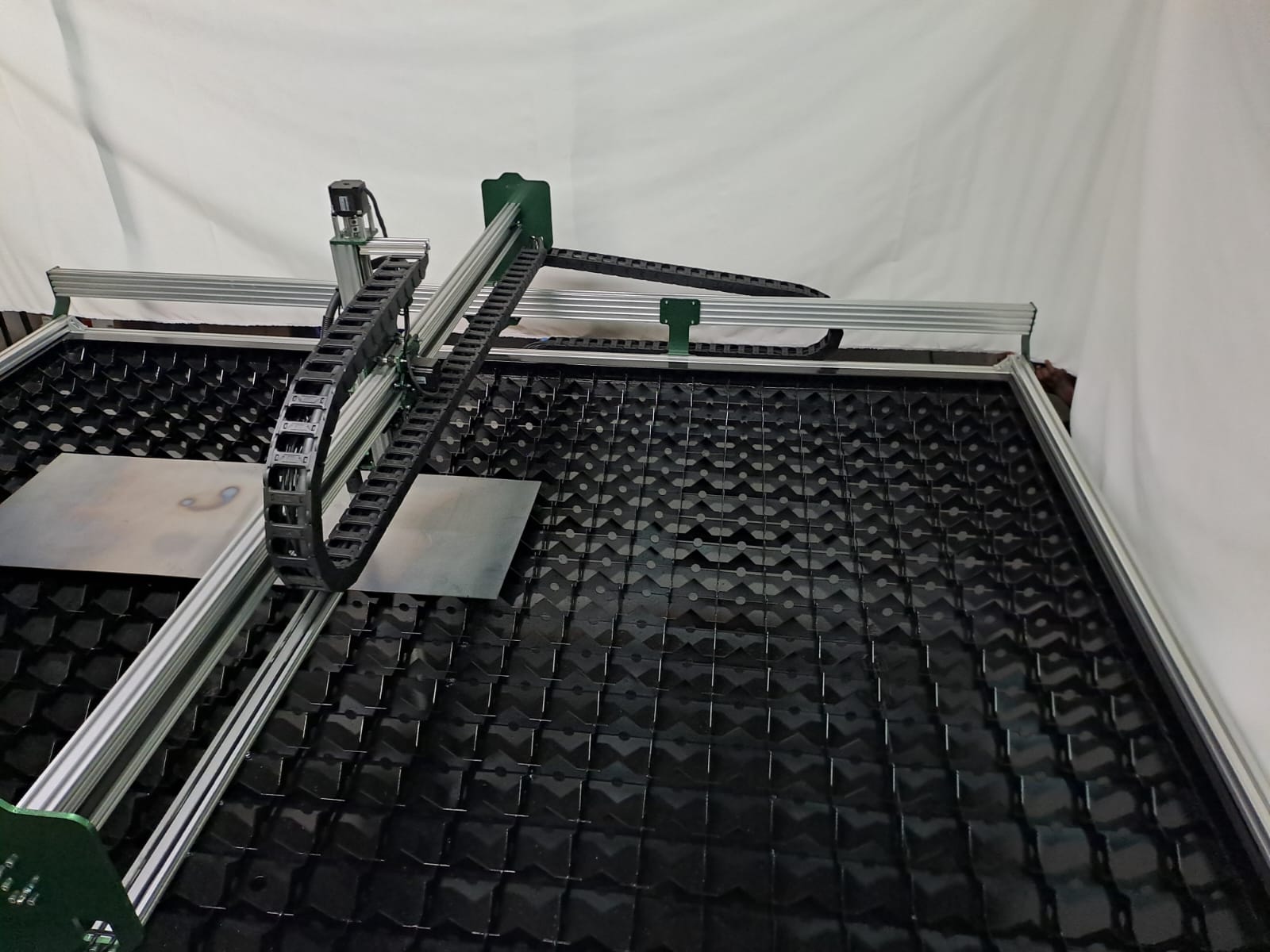

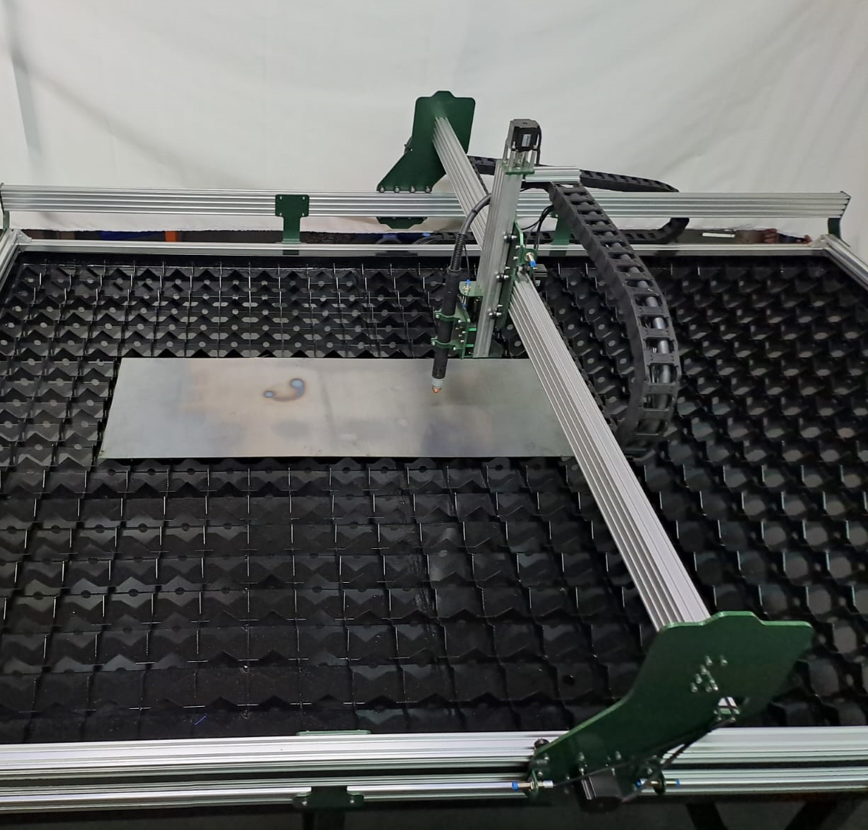

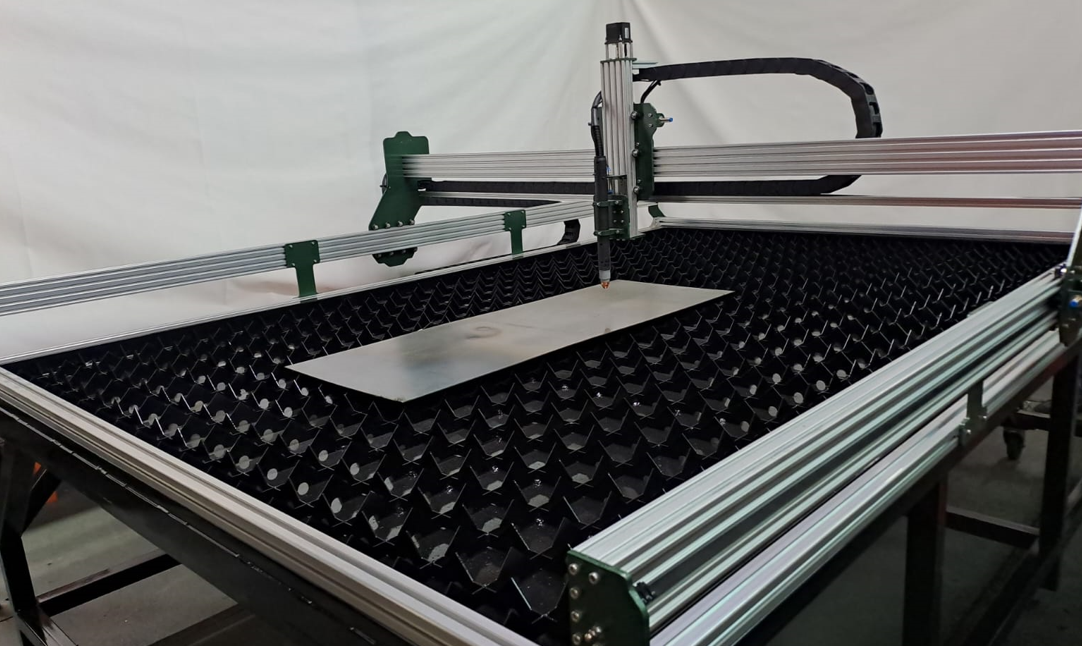

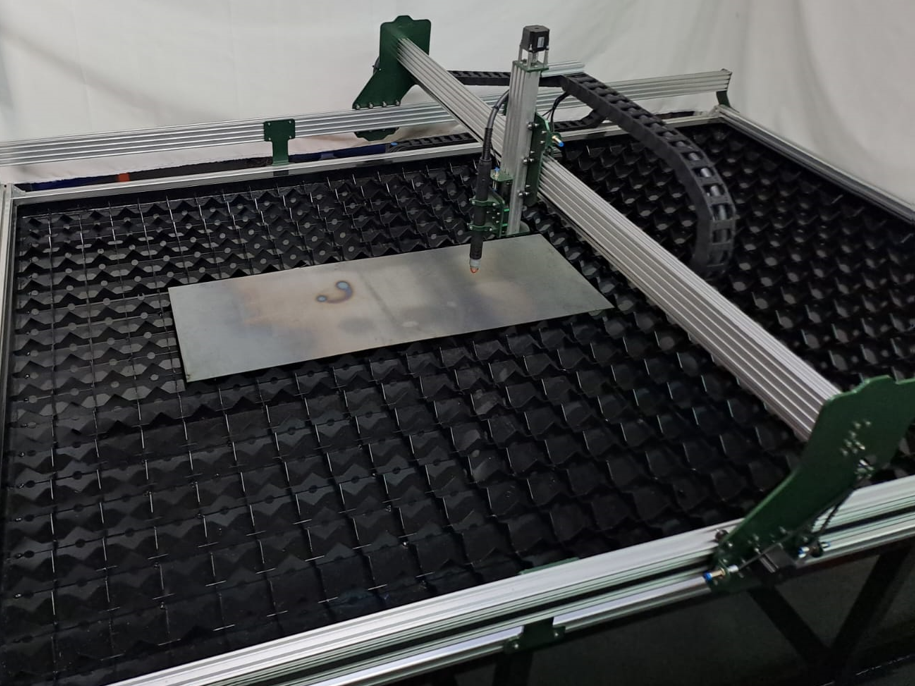

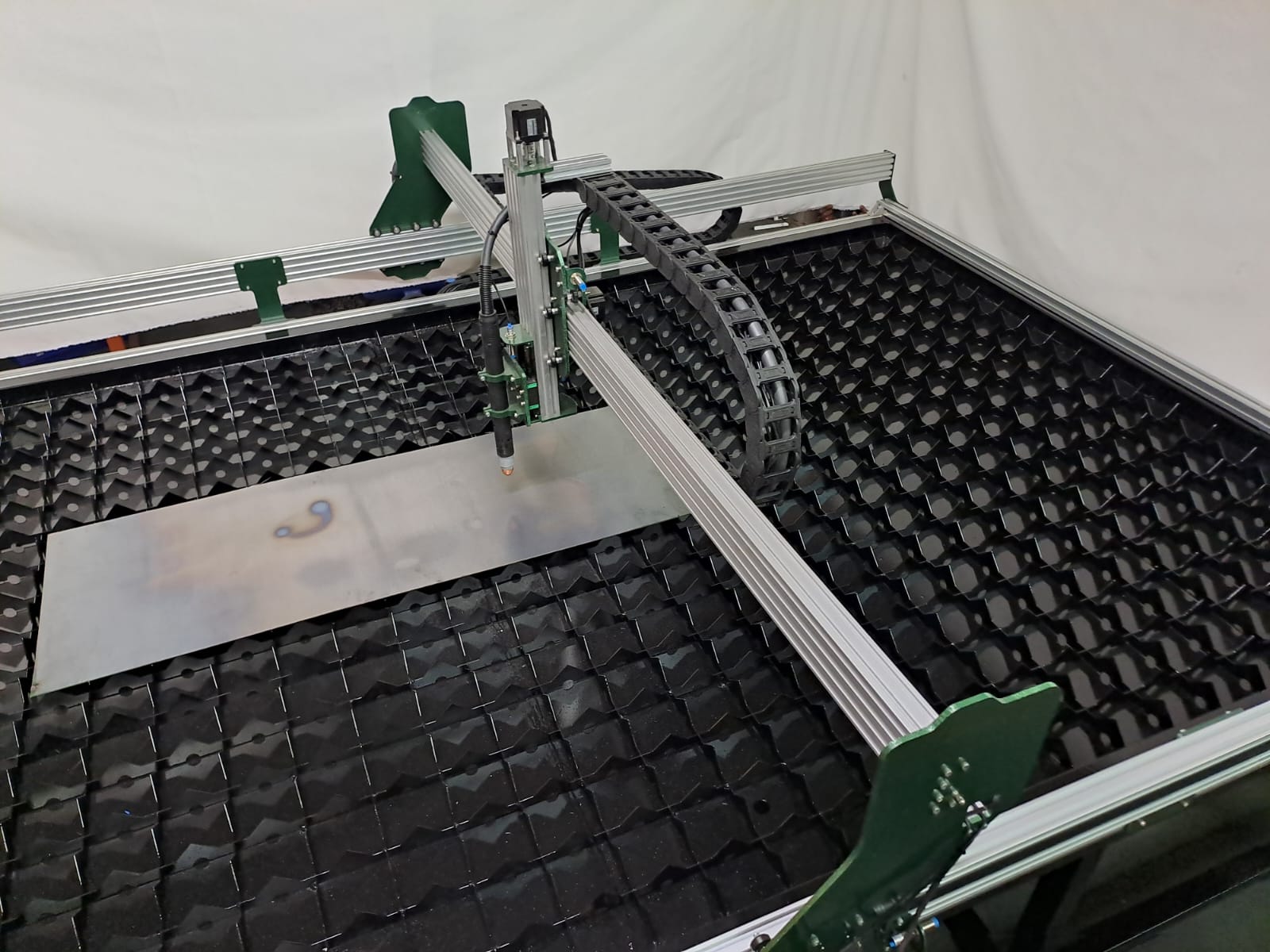

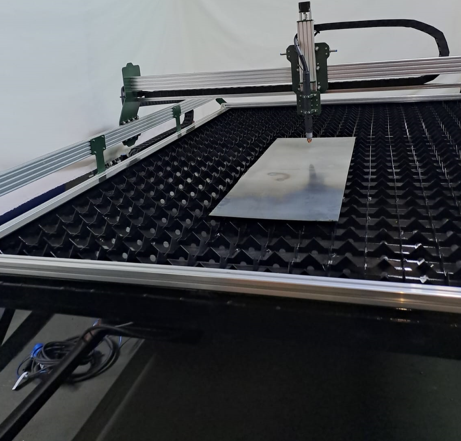

Space Build X Plasma Cutting CNC Machine SBXP1530
Space Build X Plasma Cutting CNC Machine SBXP1530
Space Build X Plasma Cutting CNC Machine SBXP1530

Space Build X Plasma Cutting CNC Machine SBXP1530

  • Save
    R 30,000
Shipping calculated at checkout.

Space Build X Plasma Cutting CNC Machine SBXP1530


1.5x2.5m CNC Machine Specs:

a New line of next generation CNC Plasma Cutters that blur the line between hobby and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper.


CNC Machine Features:

Footprint: 1500mm x 2500mm at the base *Stock size measured from base

Work Area: 1300mm x 2300mm x 50mm *Stock size

Maximum cutting depth 20mm.

Open ends allow pass through of longer materials.

All aluminium frame.

Electronics controller box with USB cable connection (cable included)

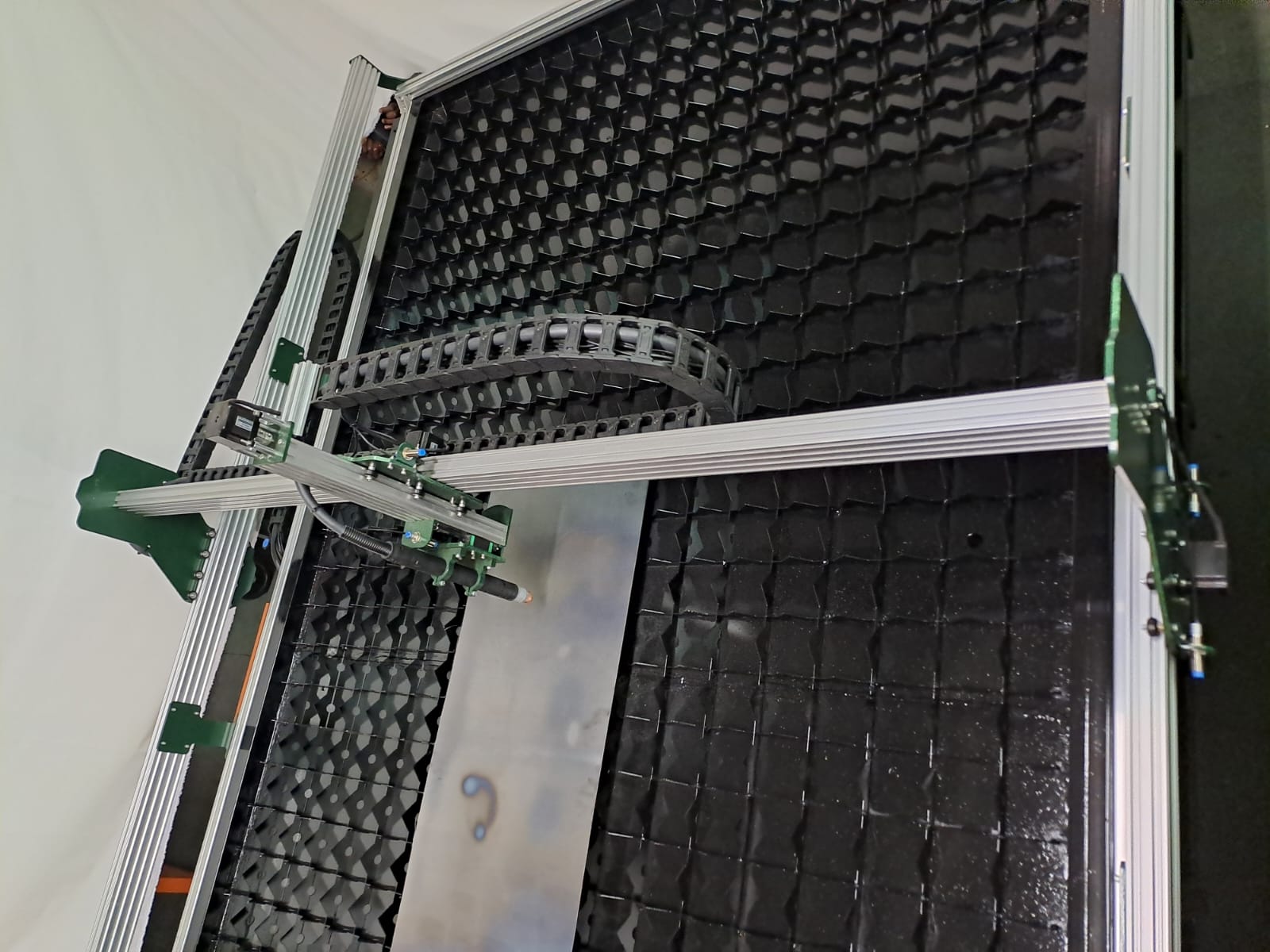

Full cable management with X & Y axis cable drag chains.

X Y Limit Switches

Torch Height Controller

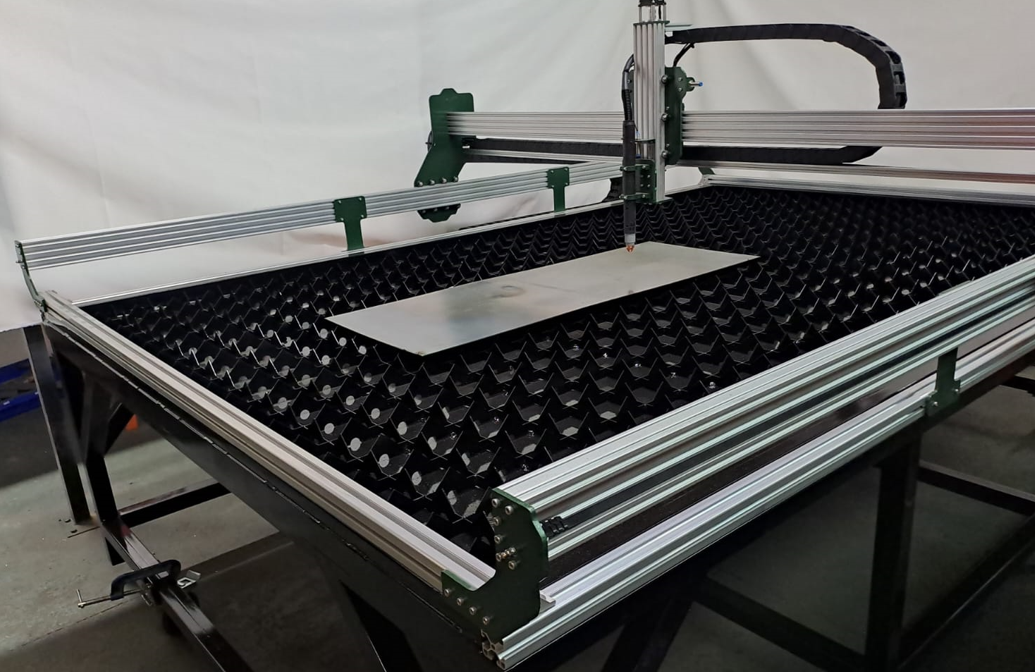

Square Tubing Table painted black

Water Table With Water Outlet

Floating Z-Probe

Lotus HC8000 Plasma Cutter with straight torch

Mach4 Controller License included



Requirements:

Personal computer or Laptop running Windows 7, 8 or 10.

USB port on computer

Free Downloadable Software & License Included


Machine Specifications:

4x Nema23 stepper motors 12.6kg/cm 175oz/in.

4 Axis Stepper Motor Driver Controller Board.

12V 100W Power Supply.

GT2 reinforced neoprene 3mm pitch timing belts on X & Y axis.

Dual motors on Y axis.

T8 lead screw on Z axis

Configured resolution: 0.5mm

Technical Data:

Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH | 60% @ 41 A, 200 – 240 V, 1-PH | 100% @ 32 A, 200 – 240 V, 1-PH | 50% @ 45 A, 480 V, 3-PH | 60% @ 41 A, 480 V, 3-PH | 100% @ 32 A, 480 V, 3-PH

Output Current Range (A) Plasma: 10-45Amps

Rate input current (A): 39A

Efficiency (%): 88

Clean Cutting Thickness: (12mm)

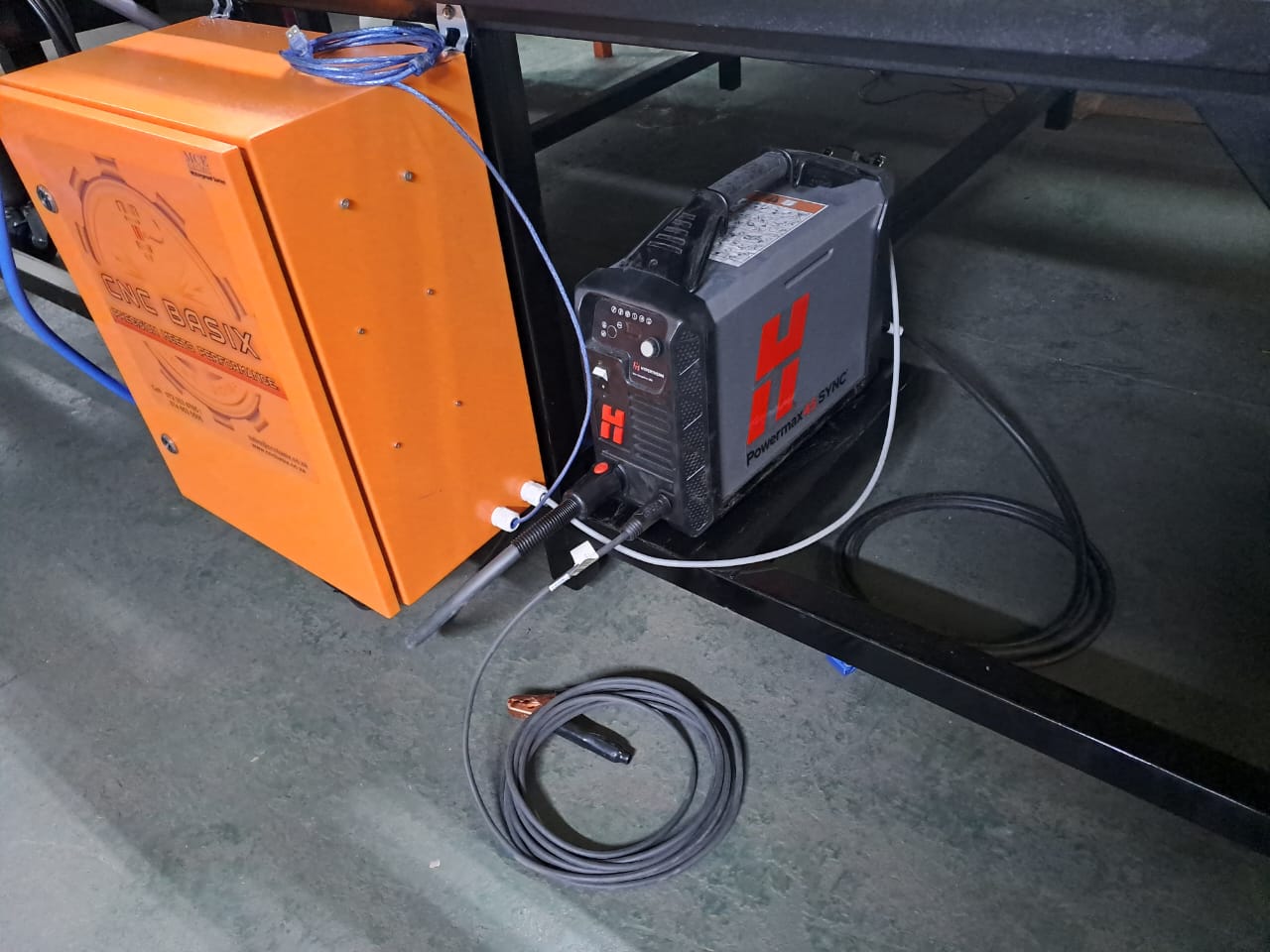

Hypertherm 45XP



    • Please allow 4-6 weeks for the machine to be ready as we import some of the parts on order.
    • Please note that we can't courier the machine because of the size of the machine and that the machine comes standard with a plasma cutting table.

    • Please note that delivery fees may apply depending on your location and depending on the size of the machine required.

    • Images are for illustrative purposes only.
