Space Build X Ball Screw Plasma Cutting CNC Machine SBXBP1530

  • R 165,000.00
    Unit price per
  • Save
    R 35,000
Shipping calculated at checkout.

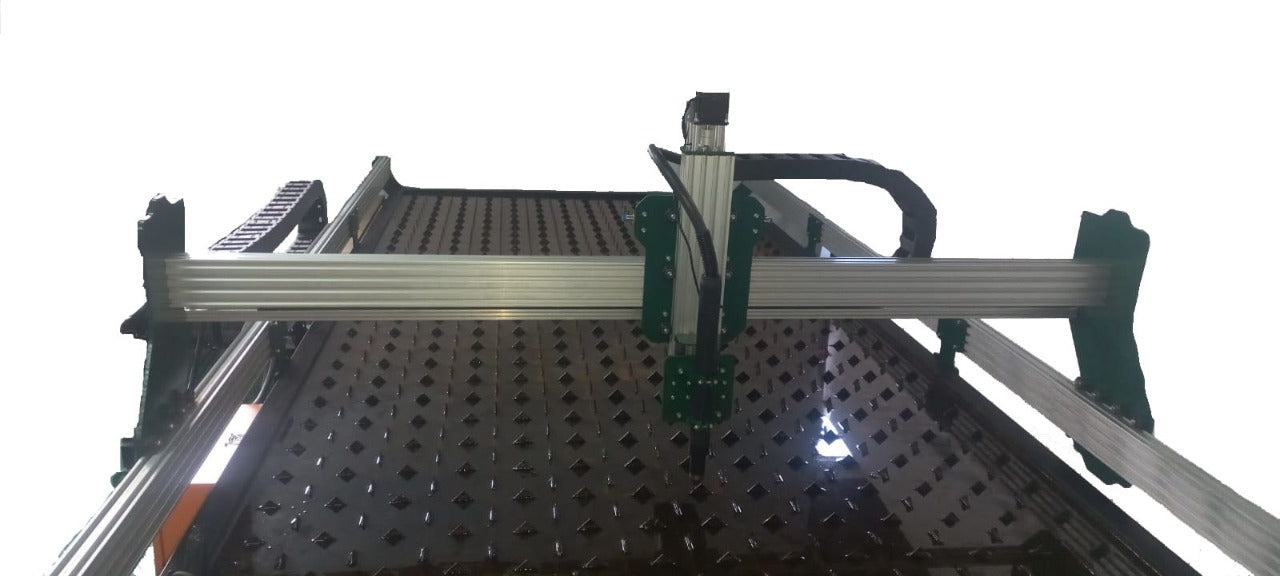

Space Build X Ball Screw Plasma Cutting CNC Machine SBXBP1530


1.5x3m CNC Machine Specs:

a New line of next generation CNC Plasma Cutters that blur the line between hobby and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper.

CNC Machine Features:

Footprint: 1500mm x 3000mm at the base *Stock size measured from base

Work Area: 1200mm x 2700mm x 50mm *Stock size

Maximum cutting depth 20mm.

Open ends allow pass through of longer materials.

All aluminium frame.

Electronics controller box with USB cable connection (cable included)

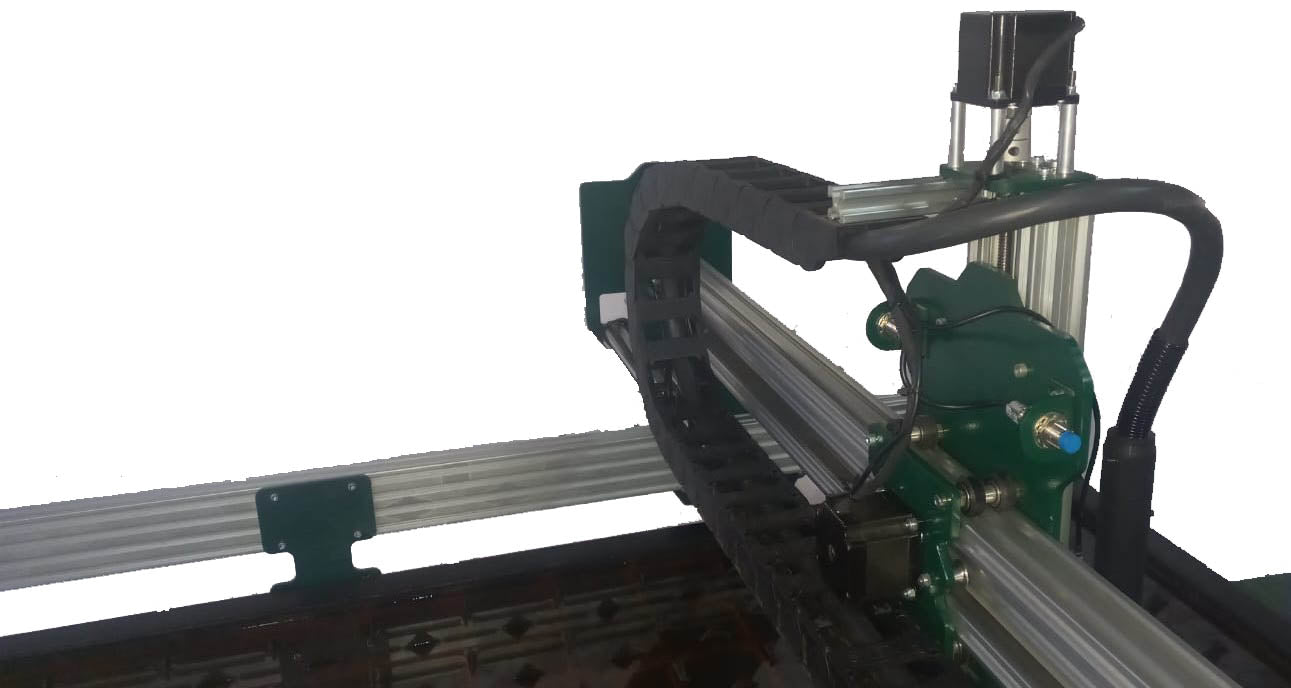

Full HGR15 linear rail management with SFU20 ball screws for X & Y axis with cable drag chains

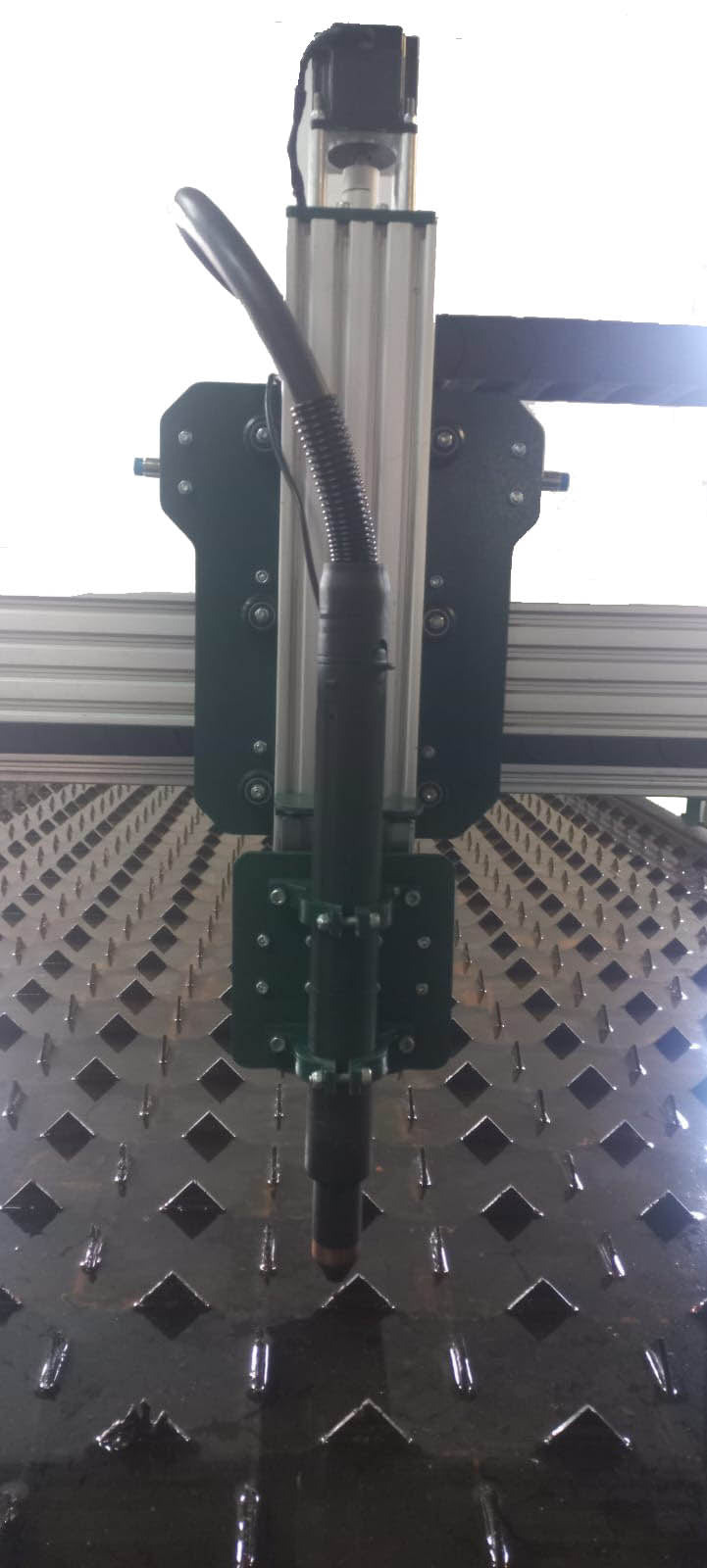

Lead screw and HGR15 linear rail management for Z axis

7 Limit Switches (X+, X-, Y+, Y-, Z+)

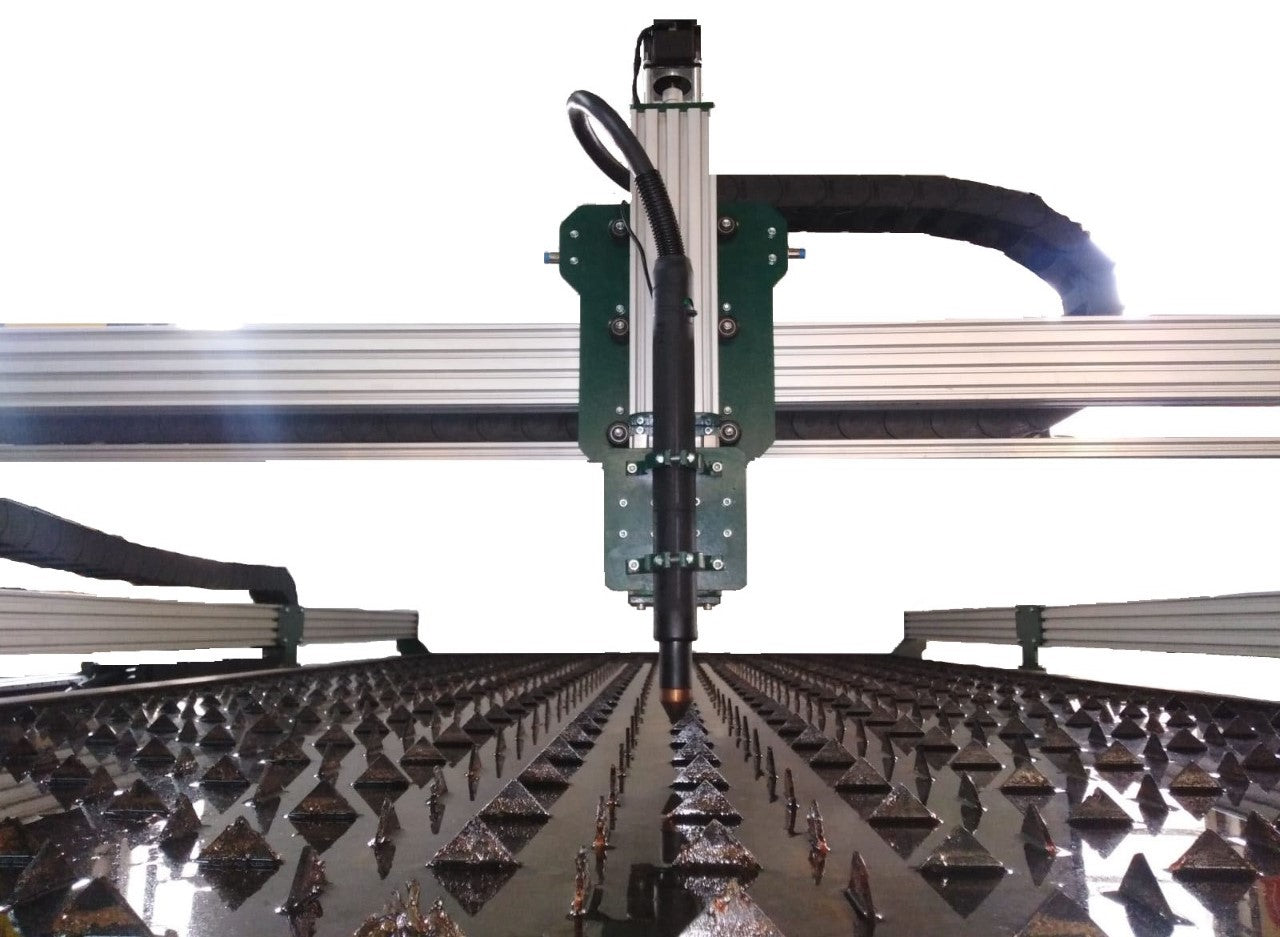

Torch Height Controller

Square Tubing Table painted black

Water Table With Water Outlet

Floating Z-Probe

Hypertherm 45XP Plasma Cutter with straight torch 7m Lead

Mach3 Controller License included



Requirements:

Personal computer or Laptop running Windows 7, 8, 10 or 11.

USB port on computer

Free Downloadable Software & License Included


Machine Specifications:

3x Name 34 stepper motors 30kg.cm

1x Nema 23 stepper motors 30kg.cm

4 Axis Stepper Motor Driver Controller Board

12V 100W Power Supply

Full HGR15 linear rail management with SFU20 ball screws for X & Y axis with cable drag chains

Lead screw and HGR15 linear rail management for Z axis

Dual motors on Y axis

T8 lead screw on Z axis

Configured resolution: 0.3mm

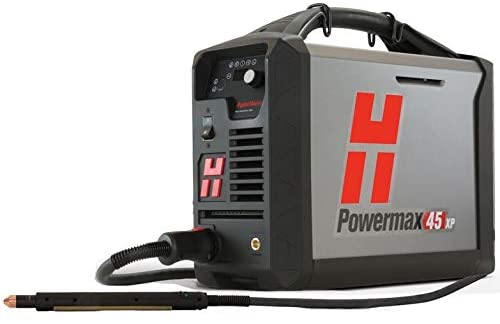

Technical Data of Hypertherm 45XP:

Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH

60% @ 41 A, 200 – 240 V, 1-PH

100% @ 32 A, 200 – 240 V, 1-PH

Output Current Range (A) Plasma: 10-45Amps

Rate input current (A): 39A

Efficiency (%): 88

Clean Cutting Thickness: (12mm)



Free 200L Mac Afric Compressor:

Motor Power: 2.2KW / 3 HP

Motor/Pump Type: Belt Drive

Tank Size: 200 Liters

Clan Air Delivery Rate: 8.83 CFM (250 Liters/min)

Input Power: 230V Single Phase

Maximum Pressure: 116 PSI, 8 Bar



    • Please allow 3-4 weeks for the machine to be ready as we import some of the parts on order.

    • Please allow 3-7 working days for delivery – depending on the delivery address.
    • The machine comes standard with a plasma cutting table.

    • The machine comes with a Free 200L Mac Afric Drive Belt Compressor.

    • Images are for illustrative purposes only.

    • Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
