Polycarbonate V-Slot Wheel Kit
Polycarbonate V-Slot Wheel Kit

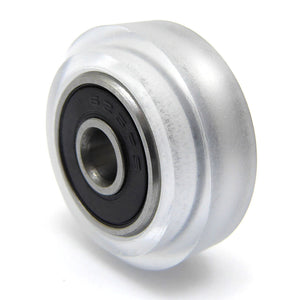

Polycarbonate V-Slot Wheel kit to run on V-Slot aluminium profiles. Accurately machined, durable and reliable. These wheels are stronger than the standard delrin wheels and are used in high load machines like CNC machines. It is a cost effective, durable and accurate solution for these applications.
This includes everything you need to mount the wheel to a plate. The kit consists of:
- Polycarbonate V-Wheel
- 2 x 625 sealed bearings
- Precision shim
- Aluminium mounting spacer
- Bolt: M5 x 25
- Lock Nut: M5
This kit is designed to be mounter to a plate up to 3mm thickness. If you want to mount it to a thicker plate, you will need a longer screw.
To be able to set the pre-load between the wheels, eccentric nuts are used for this purpose. The eccentric nuts are not included in this kit, but is sold separately
- Wheel size: OD = 24mm, Width = 10mm
- Wheel material: Polycarbonate
- Wheel hardness: M75
- Wheel compressive strength: 86 MPa
- Bolt size: M5 x 25
- Bearing size: 625 bearing
- Mounting Spacer Size: OD = 10mm, ID = 5.7mm, Length = 6.3mm
For instructions on how to assemble the V-Wheel assembly, please view this video: https://www.youtube.com/watch?v=pMtHy7sDNG4
