Polycarbonate Mini V-Wheel

  • R 70.00
    Unit price per
Shipping calculated at checkout.


Polycarbonate Mini V-Wheel

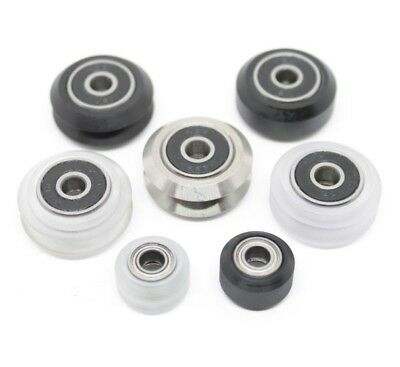

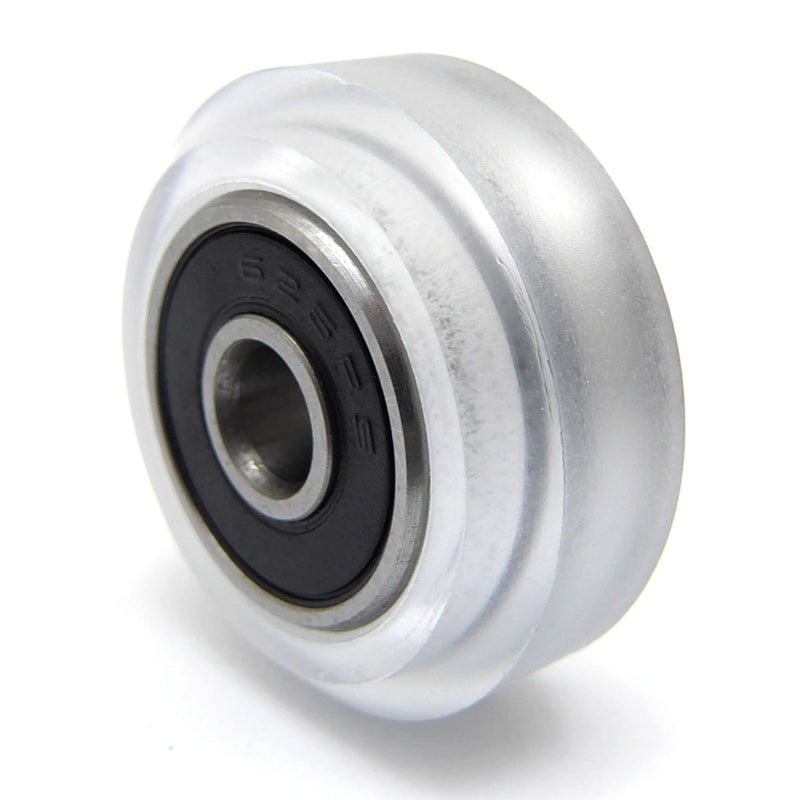

Mini V-Slot Wheel kit to run on V-Slot aluminium profiles.  Accurately machined, durable and reliable.  These wheels are used in 3D printers, laser cutters, CNC machines and other linear motion machines.  It is a cost effective, durable and accurate solution for these applications.

The Mini V-Wheel are used when running wheels on the inside of a C-Beam aluminium profile.  If the standards size V-Wheels are used for this application then the wheels will touch each other.

This includes everything you need to mount the wheel to a plate.  The kit consists of:

  • Mini Polycarbonate V-Wheel
  • 2 x MR105ZZ sealed bearings
  • Precision shim
  • Aluminium mounting spacer
  • Bolt: M5 x 25
  • Lock Nut: M5

This kit is designed to be mounter to a plate up to 3mm thickness.  If you want to mount it to a thicker plate, you will need a longer screw.

To be able to set the pre-load between the wheels, eccentric nuts are used for this purpose.  The eccentric nuts are not included in this kit, but is sold separately

Specifications:

  • Wheel size: OD = 15mm, Width = 9mm
  • Wheel material: Polycarbonate
  • Wheel hardness: M75
  • Wheel compressive strength: 86 MPa
  • Bolt size: M5 x 25
  • Bearing size: MR105 bearing
  • Mounting Spacer Size: OD = 10mm, ID = 5.7mm, Length = 6mm

For instructions on how to assemble the V-Wheel assembly, please view this video: https://www.youtube.com/watch?v=pMtHy7sDNG4
