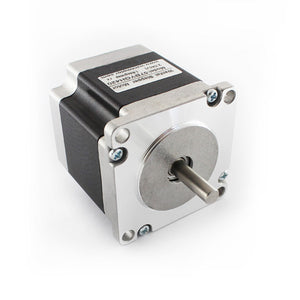

Nema 23 x 51mm Stepper Motor

Nema 23 x 51mm Stepper Motor

NEMA 23 stepper motors are used on bigger 3D printers and CNC machines.  This is a high torque stepper motor and comes with 300mm leads.

The stepper driver we recommend with this motor is the MKS TB6600 or the Wantai DQ542MA stepper driver.

Specifications:

• Size: NEMA 23 (57mm x 57mm)
• Length: 51mm
• Step angle: 1.8 Degrees
• Rated voltage: 2.6V
• Current/Phase: 2.8A
• Resistance/Phase: 0.83 Ohm
• Inductance/Phase: 2.2 mH
• Holding Torque: 10.1 kg.cm (1.01 Nm)
• Number of leads: 4
• Weight: 0.61 kg
• Max Radial Force on output shaft: 75N (10mm from flange)
• Max Axial Force on output shaft: 15N

Dimensions:
