Nema 23 x 115 Stepper Motor

Nema 23 x 112mm Stepper Motor

  • R 999.95
    Unit price per
Tax included. Shipping calculated at checkout.

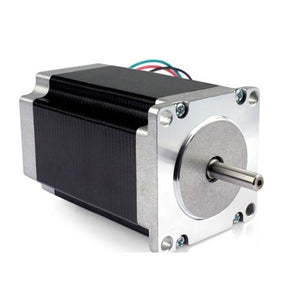

Nema 23 x 112mm Stepper Motor


NEMA 23 stepper motors are used on big 3D printers and CNC machines.  This is a high torque, bi-polar, 4-wire stepper motor and comes with 300mm leads.

Nema 23 x 115mm Stepper Motor Specifications:


    • Size: NEMA 23 (57mm x 57mm)

    • Length: 112mm

    • Step angle: 1.8 Degrees

    • Rated voltage: 6.3V

    • Current/Phase: 3A

    • Resistance/Phase: 2.1 Ohm

    • Inductance/Phase: 9mH

    • Holding Torque: 30kg.cm

    • Number of leads: 4

    • Rotor inertia: 810g.cm^2

    • Weight: 1.63kg


Recommended stepper driver for this motor: MKS TB6600 Stepper Driver



Dimensions:

Please note: This motors has a 8mm diameter output shaft due to the higher torque.


If this product is purchased and no stock is available, our sales team will contact you with the option of a full refund or suggest similar alternatives which are in stock. If you would like to confirm stock before purchase, please contact our online sales team or email sales@gadgitechtrading.co.za
