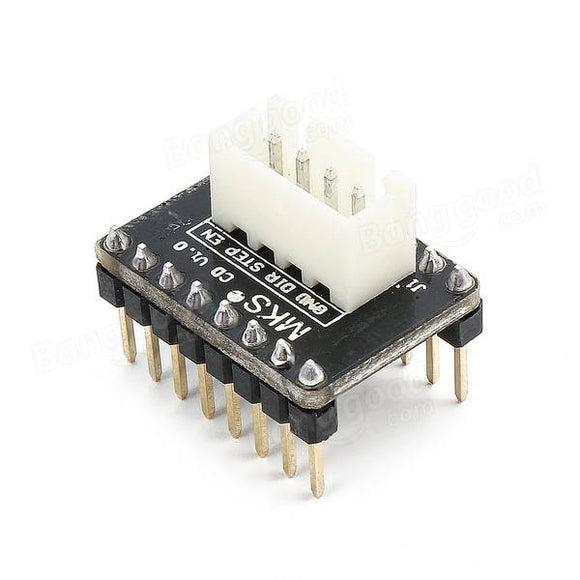

MKS CD V1.0 Stepper Driver Breakout Board
MKS CD V1.0 Stepper Driver Breakout Board
This MKS CD V1.0 stepper driver breakout board is used when stand alone stepper driver is used with a board which is design for small stepper drivers (A4988 & DRV8825).
So if you have a RAMPS 1.4 board and need to drive a stand alone stepper driver (like the TB6600), then this board will give you easy access to the signals needed for the stand alone stepper driver.
