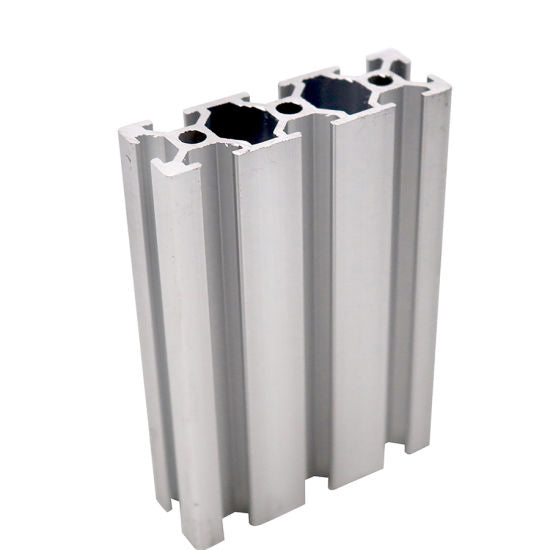

C-Beam Aluminium V-Slot Profile

  • R 450.00
    Unit price per
Shipping calculated at checkout.


C-Beam Aluminium V-Slot Profile


We keep all profiles in standard lengths of 1m and 3m.  You can only buy the aluminium in a 1m or 3m length.  We can also cut it for you if you require.  For example, if you require a 1500mm length and 3 x 500mm lengths then specify as follows: 1 x 1500mm, 3 x 500mm.

C-Beam Aluminium V-Slot Profile for a wide variety of projects.  This high quality and accurate C-Beam profile coated with Silver anodizing design for V-wheels for linear motion.  This is the largest profile in the V-Slot range and are meant for very high load applications like CNC machines.  The advantage of using these profiles is that it serves as the frame of the machine as well as the linear rails for movement.  The profiles are ordered in 3m lengths and we cut it to any length as required.

We can ship lengths up to 2m with our standard courier service.  For longer lengths, please contact us for the courier options or you can pick it up from our store in Centurion.

Specifications:


  • Profile size: 40 x 80mm

  • Length: 5mm to 3000mm (We cut to size)

  • Maximum length: 3m

  • Material: Aluminium 6063 T5

  • Coating: Silver Anodized

  • Profile weight: 2.092kg/m

  • Ix = 121cm^4

  • Iy = 591cm^4
