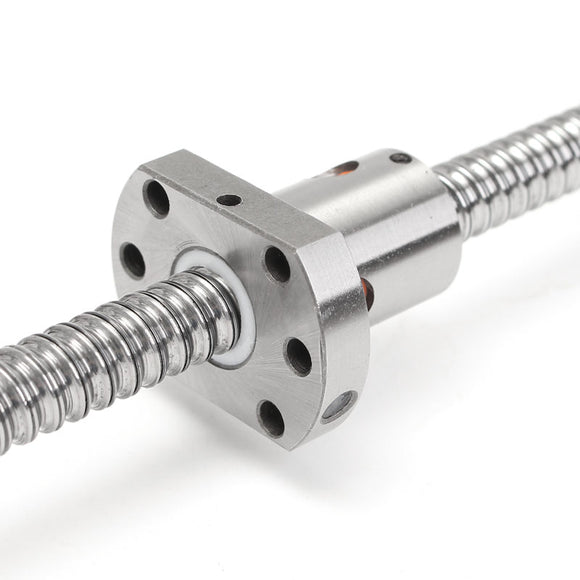

Ball Screw With Nut SFU1204 X 800mm

Ball Screw With Nut SFU1204 X 800mm

Ball screw with nut to transfer rotation movement into linear movement.  This is a high quality ball screw with machined ends for easy assembly to bearing blocks.

Specifications:

• Ball screw rod diameter: 12mm


• Pitch: 4mm per revolution


• Length from end to end: 800mm


• Effective travel length: 700mm


• Product code: SFU1204


• Static load rating: 6.7kN


• Dynamic load rating: 4.0kN


• Fixed end machined for BK10 or FK10 bearing block


• Floating end machined for FK10 or FF10 bearing block


• Please see machining dimensions below:
