AXYZ1530PL Plasma Cutting CNC Machine - Masso Controller

  • R 218,500.00
    Unit price per
Tax included. Shipping calculated at checkout.


AXYZ1530PL Plasma Cutting CNC Machine - Masso Controller


1.5x3m CNC Machine Specs:

a New line of next generation CNC Plasma Cutters that blur the line between hobby and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper.

CNC Machine Features:

Footprint: 1500mm x 3000mm at the base *Stock size measured from base

Work Area: 1300mm x 2800mm x 50mm *Stock size

Maximum cutting depth 12mm.

Open ends allow pass through of longer materials.

All aluminium frame.

Electronics controller box with USB cable connection (cable included)

Full cable management with X & Y axis cable drag chains.

7 Limit Switches (X+, X-, Y+, Y-, Z+)

Torch Height Controller

Square Tubing Table painted black

Water Table With Water Outlet

Floating Z-Probe

Hypertherm 45XP Plasma Cutter with straight torch 7m Lead

Masso Controller License included


Machine Specifications:

4x Nema23 stepper motors 12.6kg/cm 175oz/in

4 Axis Stepper Motor Driver Controller Board

12V 100W Power Supply

GT3 reinforced neoprene 3mm pitch timing belts on X & Y axis

Dual motors on Y axis

T8 lead screw on Z axis

Configured resolution: 0.3mm



Technical Data of Hypertherm 45XP:

Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH

60% @ 41 A, 200 – 240 V, 1-PH

100% @ 32 A, 200 – 240 V, 1-PH

Output Current Range (A) Plasma: 10-45Amps

Rate input current (A): 39A

Efficiency (%): 88

Clean Cutting Thickness: (12mm)



Free 200L Mac Afric Compressor:

Motor Power: 2.2KW / 3 HP

Motor/Pump Type: Belt Drive

Tank Size: 200 Liters

Clan Air Delivery Rate: 8.83 CFM (250 Liters/min)

Input Power: 230V Single Phase

Maximum Pressure: 116 PSI, 8 Bar

MASSO G3

Powerful. Stable. Guaranteed.

MASSO G3 is the most stable, reliable and easy-to-use CNC controller money can buy. Escape the reliability issues of PC-based controllers, which are vulnerable to external design flaws, incompatible software updates and viruses. No need to worry about installing drivers or motion cards, just wire the MASSO to your motor drives and enter calibration values to start machining.

With MASSO G3 you get:

Fully integrated hardware and software specifically designed to run CNC machines independently of a PC.

Lathe, Mill, Router, Plasma or WaterJet machine control with up to 5-axis control.

Built-in Wi-Fi for PC connectivity via MASSO-Link software. Remotely monitor machine status and send g-code files.

Simple, easy-to-use screen layout.

Tool path display so you can see and position your job in real time.

Four USB ports to directly connect keyboard, mouse, touchscreen and pen drive without the need for a USB hub.

Direct spindle control and MPG handwheel dial support.



    • Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
    • Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
    • Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time
    • The machine comes standard with a plasma cutting table.

    • The machine comes with a Free 200L Mac Afric Drive Belt Compressor.

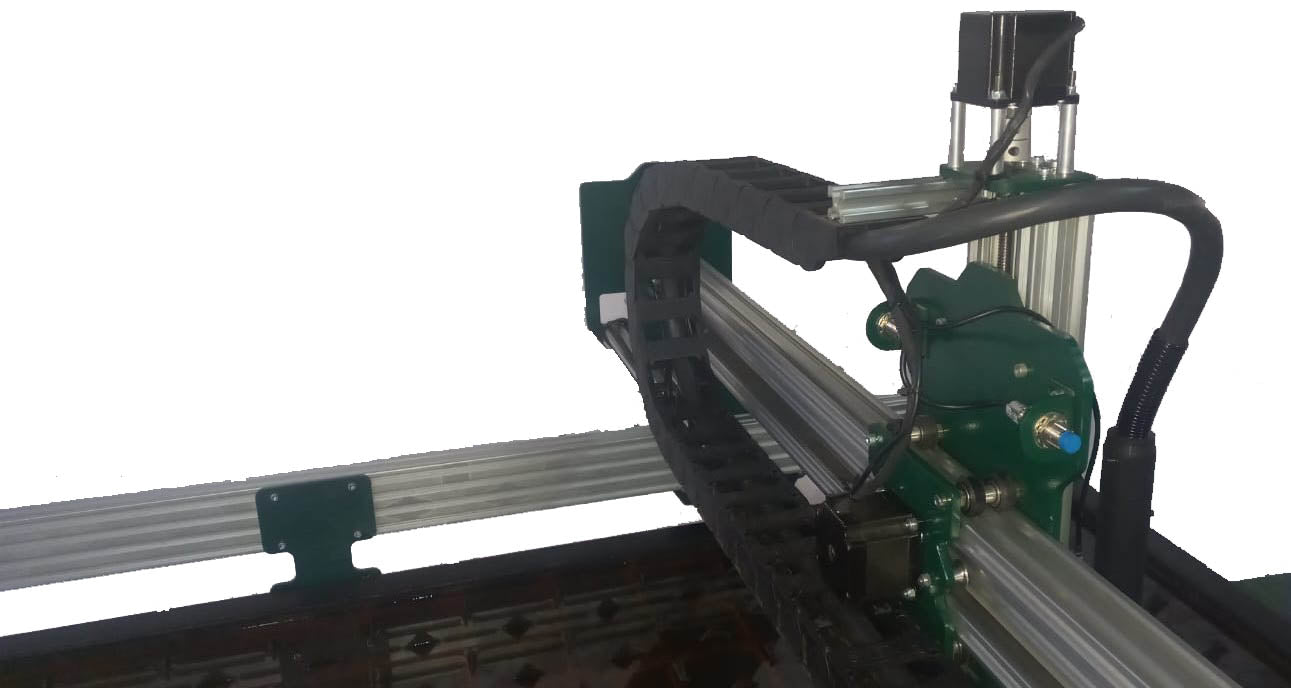

    • Images are for illustrative purposes only.
