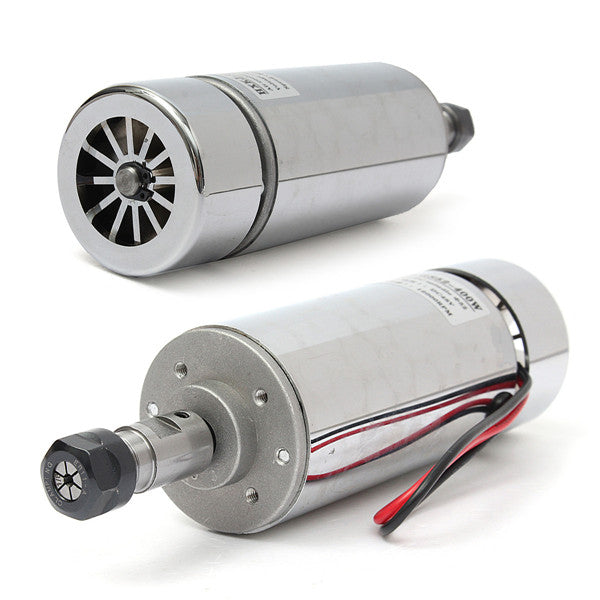

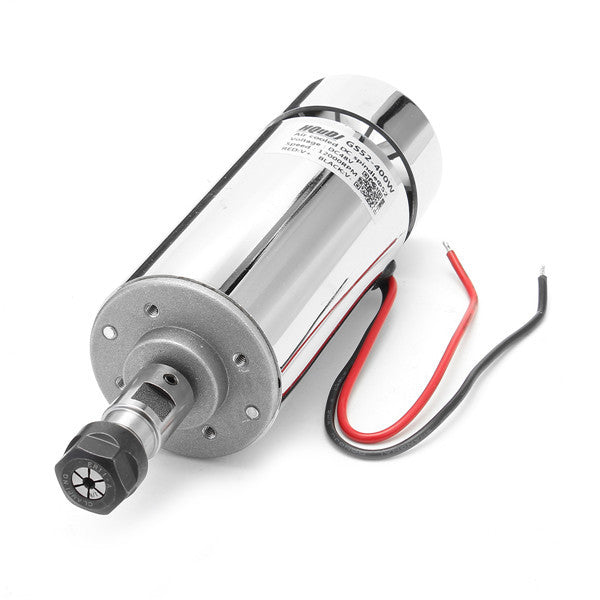

400W Spindle


400W DC spindle motor capable of running up to 12 000 RPM.  This spindle is perfect for hobby applications to engrave or mill wood, plastic, composites, PCBs, structural foam and even soft metals like aluminium and brass.

400W Spindle Specifications:


  • Power output: 400W

  • Voltage: 0 - 48V

  • Speed: 0 - 12 000RPM

  •  Motor Type: Brushed DC Motor

  • Diameter: 52mm



  • Collet: ER11 (Comes with a 3.175mm collet)

  • Cooling: Air Cooled


Working voltage :12-48VDC

Power: 400W

Speed :3000-12000RPM  (12v-3000rpm,24V-6000rpm,36V-9000rpm  .48V-12000rpm)

Torque:500mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 185mm (including gripping parts and motor)


Spindle run out of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.



Features:

Wide voltage PWM DC brush motor speed controller. Applies to DC12-48V low voltage permanent magnet brushed DC motor.

Rotation speed: 3000-12000r/min (12V-3000r/min, 24V-6000r/min, 36V-9000r/min, 48V-12000r/min).

Can be used for engraving metal or nonmetal materials.

This comes with air-cooled spindle can work long hours.

Suitable for carving PCB, acrylic, drilling.

Package Included:
1 x 400W Air Cooled Spindle Motor
