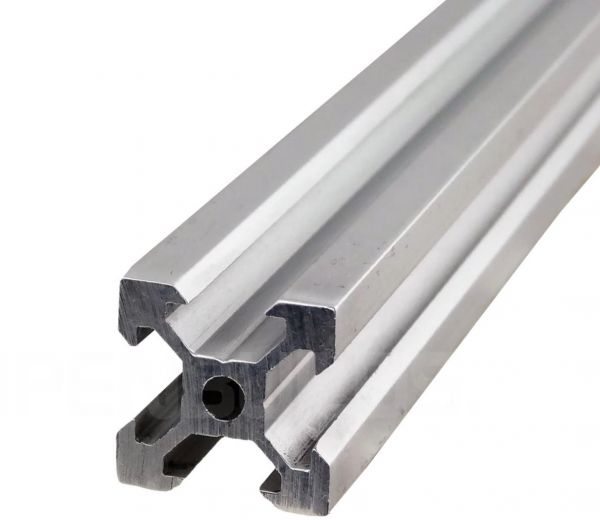

20 x 20 Aluminium V-Slot Profile

  • R 150.00
    Unit price per
Shipping calculated at checkout.




20 x 20 Aluminium V-Slot Profile


We keep all profiles in standard lengths of 1m 1.5m and 2m.  We can also cut it for you if you require.  For example, if you require a 1500mm length and 3 x 500mm lengths then specify as follows: 1 x 1500mm, 3 x 500mm.

20 x 20 Aluminium V-Slot Profile for a wide variety of projects.  This is a high quality and high accurate profile coated with Silver anodizing design for V-wheels for linear motion.  This is the smallest profile in the V-Slot range and are meant for light load applications.  The advantage of using these profiles is that it serves as the frame of the machine as well as the linear rails for movement.  The profiles are ordered in 3m lengths and we cut it to any length as required.

We can ship lengths up to 2m with our standard courier service.  For longer lengths, please contact us for the courier options or you can pick it up from us.

Specifications:


    • Profile size: 20 x 20mm

    • Length: 5mm to 2000mm (We cut to size)

    • Maximum length: 2m

    • Material: Aluminium 6063 T5

    • Coating: Silver Anodized

    • Profile weight: 0.48kg/m

    • Ix = 0.72

    • Iy = 0.72
