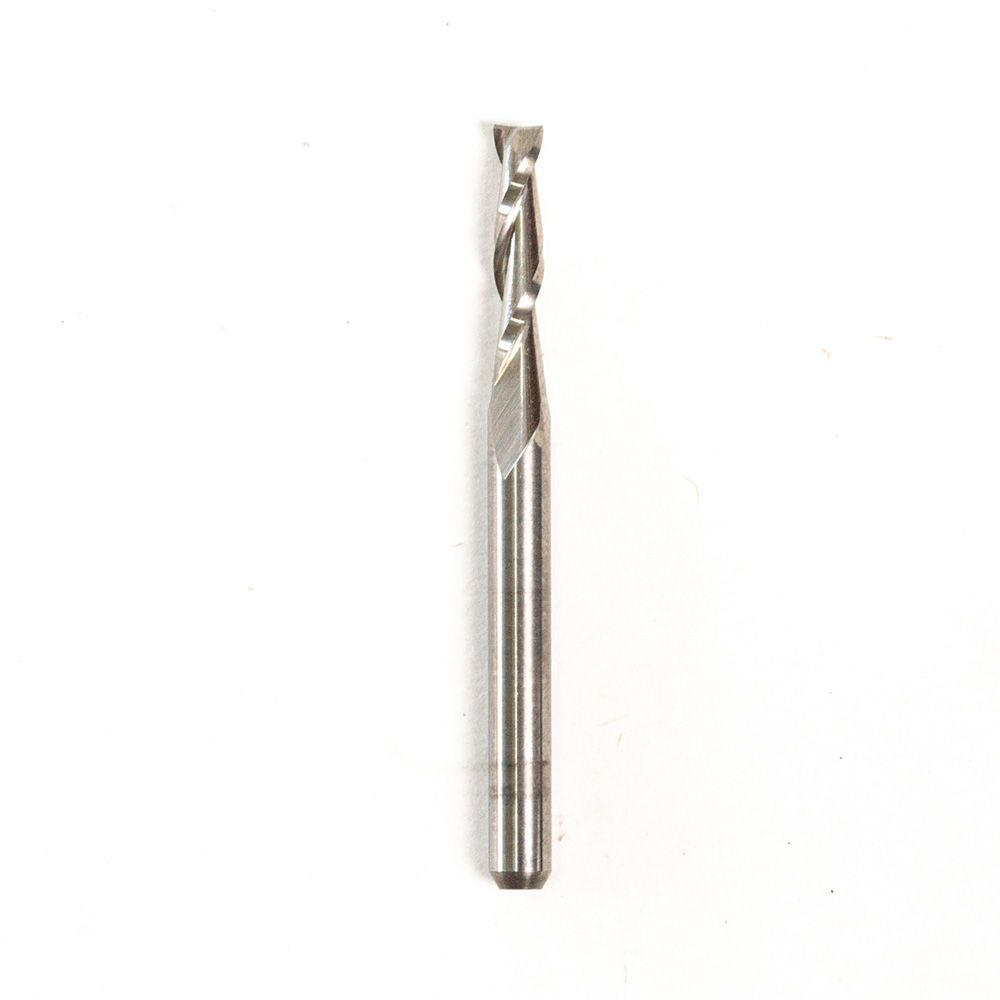

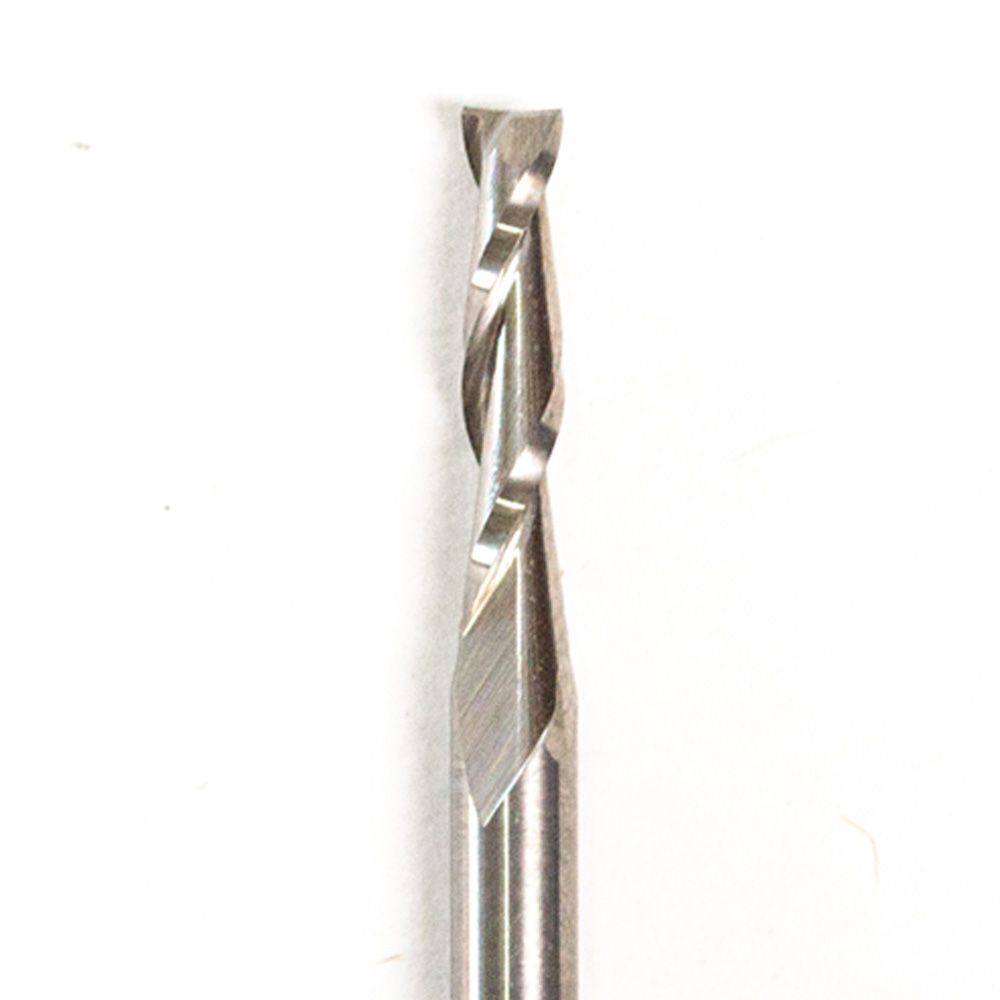

Double Flute End Mill Cutting Bit
Double Flute tungsten carbide end mill to cut a wide variety of materials. A double flute cutter has a flat bottom end which creates a smooth bottom surface. The low flute count also work better with materials which is sensitive to heat generated by the cutting bit, like plastics.
Specifications:
- Bit Type: Double flute end mill cutter
- Material: Tungsten Carbide
- Diameter: 1mm, 1.5mm, 2mm, 2.5mm, 3.175mm, 4mm, 6mm (Please select from the menu above)
- Materials to cut: Wood, Plastic, Aluminium, Brass, Composites, Cardboard and Structural foam

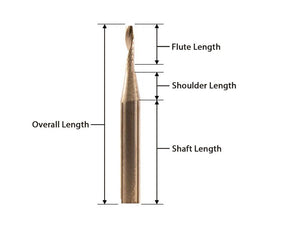

- Cutting Edge Length:
- For 1mm bit: 6mm
- For 1.5mm bit: 8mm
- For 2mm bit: 12mm
- For 2.5mm bit: 15mm
- For 3.175mm bit: 22mm
- For 4mm bit: 10mm
- For 6mm bit: 15mm
- Shank Diameter:
- For 1mm bit: 3.175mm (1/8')
- For 1.5mm bit: 3.175mm (1/8')
- For 2mm bit: 3.175mm (1/8')
- For 2.5mm bit: 3.175mm (1/8')
- For 3.175mm bit: 3.175mm (1/8')
- For 4mm bit: 4mm
- For 6mm bit: 6mm
- Cutting bit total length:
- 1mm to 3.175mm: 38mm
- 4mm & 6mm: 45mm
