5.5W Laser Engraver
5.5W Laser Engraver

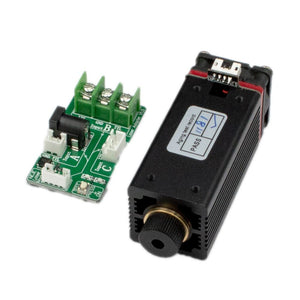

High quality blue laser module for laser engraving. This module is a good addition to any CNC machine. It has a low light button to test the laser and set the focus with the variable focus lense. The aluminium housing and forced air cooling ensures efficient cooling for optimal operation and long service life. The intensity of the laser can be adjusted via the TTL/PWM signal. Please see the table below for the materials that can be processed with this laser
5.5W Laser Engraver Specification:
It has a variable lense to set the focus. The aluminium housing and forced air cooling ensures efficient cooling for optimal operation and long service life. The intensity of the laser can be adjusted via the TTL/PWM signal. Please see the table below for the materials that can be processed with this laser.
-
Specification
- Laser Type: Blue Engraving Laser
- Laser wavelength: 445 - 450nm (violet)
- Laser Output Power: 5.5 Watt
- Laser Input Power: 20 Watt
- This laser includes a set of laser protective goggles
- Spot type: Dotted (adjustable focus)
- Lense: Variable focus lense
- Cooling method: Forced Air Cooling
- Operating voltage: 12V DC
- Operating current: <3.2A
- Housing material: Anodized aluminum
- Module material: Copper
- Life Time: Up to 20 000 hours
- Working temperature:-40 to 70 Degree Celsius
| Material | 0.5W Laser | 2.5W Laser | 5.5W Laser |
| 3mm Balsa Wood | Engrave | Engrave & Cut | Engrave & Cut |
| 5mm Balsa Wood | Engrave | Engrave | Engrave & Cut |
| 250g Card Board | Engrave | Engrave & Cut | Engrave & Cut |
| 300g Card Board | Engrave | Engrave | Engrave & Cut |
| 250g Craft Card | Engrave | Engrave | Engrave & Cut |
| Non-woven Fabric | Engrave & Cut | Engrave & Cut | Engrave & Cut |
| Cotton Fabric | Engrave & Cut | Engrave & Cut | Engrave & Cut |
| Polyester Fabric | Engrave | Engrave | Engrave & Cut |
| Canvas | Engrave | Engrave & Cut | Engrave & Cut |
| Leather | Engrave | Engrave | Engrave & Cut* |
| Solid Wood | Engrave | Engrave | Engrave |
| MDF Wood | Engrave | Engrave | Engrave & Cut** |
| Bamboo | Engrave | Engrave | Engrave |
| Acrylic / Perspex | - | Engrave | Engrave & Cut |
| Stone / Ceramic | - | - | Engrave |
| Painted Metal Surface | - | Engrave | Engrave |
| Bare metal surface | - | - | Engrave*** |
| Anodized metal surface | - | - | Engrave |
*Can cut leather thinner than 3mm with multiple passes.
**Can cut MDF thinner than 3mm with multiple passes. Yellow MDF or Laser MDF works better than normal MDF.
***Metal engraving spray, powder or tape required for laser marking on bare metal surface.
Please note:
- Always wear laser protective goggles (Included with laser) when operating a laser. This is not a toy, it is a powerful industrial tool.
- The colour of the material being processed can have a major influence on the efficiency of the laser, for example transparent and white perspex cannot be processed, but black perspex can be processed.
- Processing material with shiny surfaces like shiny metals can reflect the laser energy back into the laser which will damage the laser.
- When cutting wood, blowing compressed air onto the laser focus point increases the efficiency of the laser dramatically.
